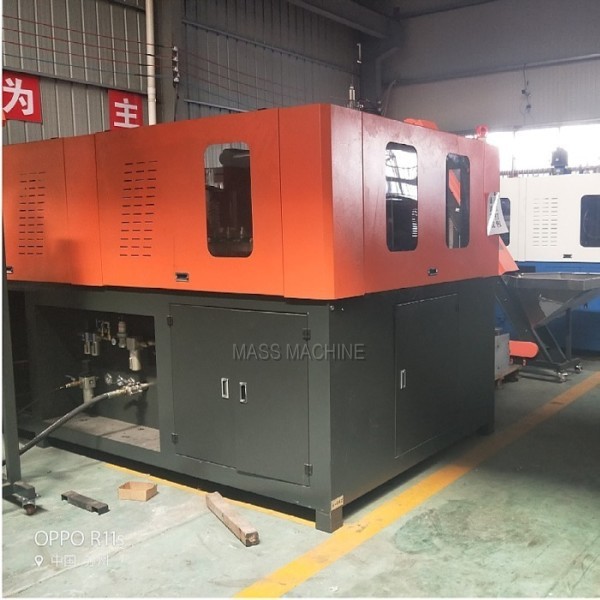

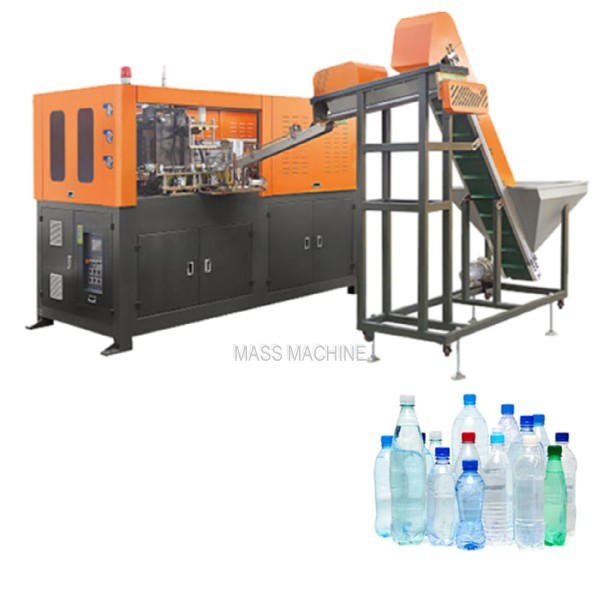

0.5L-2L Pet Bottle Automatic Blowing Machine 2 cavity

 0.5L-2L Pet Bottle Automatic Blowing Machine 2 cavity

production Introduction:

1). Stable performance with advanced PLC.

2). Automatic preform conveyer to save human cost.

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.

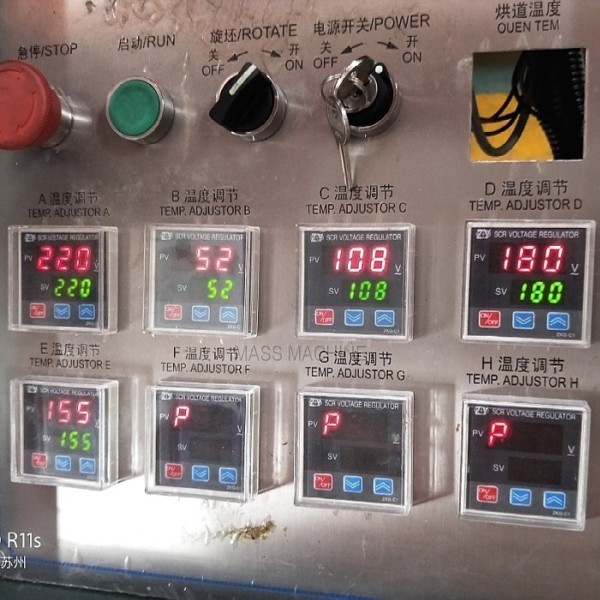

4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

6). Introduce the FESTO air cylinder to avoid contamination and noise.

7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

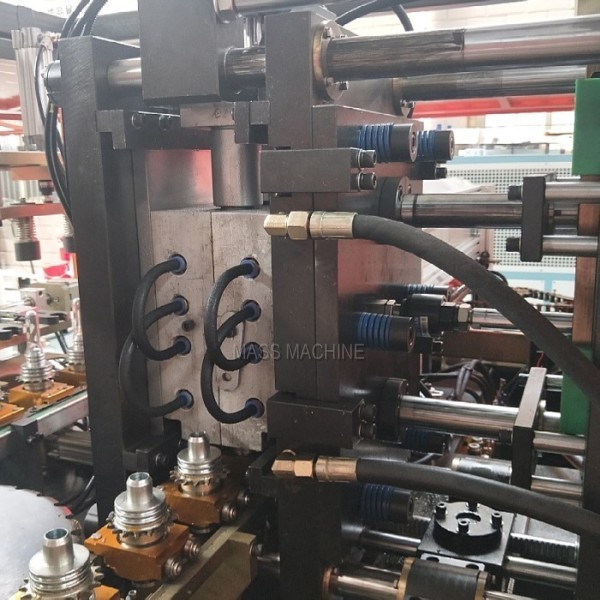

8). Strong clamping force with high pressure and double crank links to lock the mould.

9). Two ways of operating: automatic and manual.

10). Safe\reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

11). Low cost\high efficiency\easy operation and maintenance etc, profited from the fully automatic technological process.

12). Ideal cooling system make the finished bottles without any flaws.

13). Easy for you to install\test and start up.

14). Low rejection rate: less than 0.2 percent.

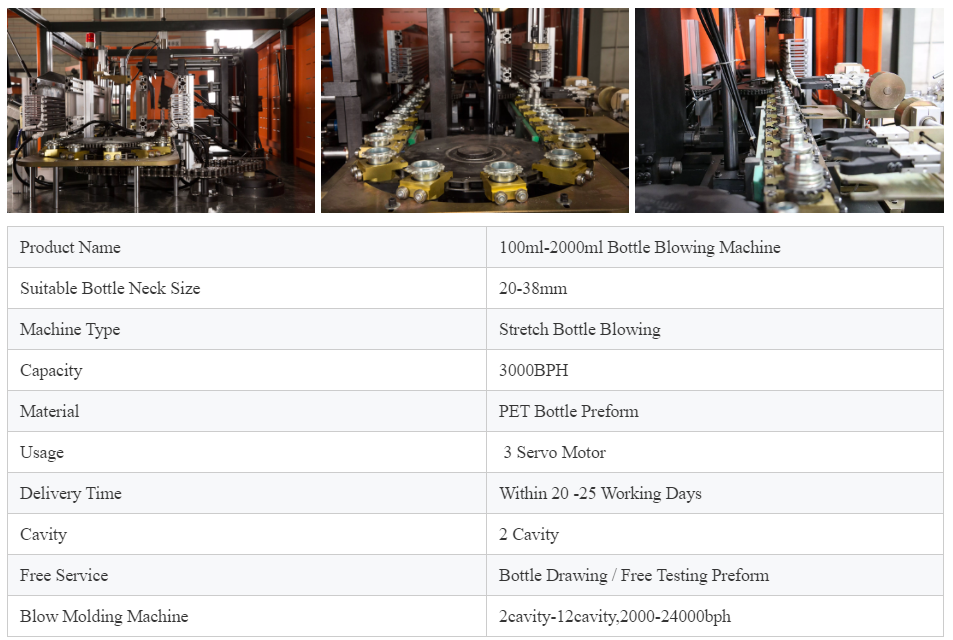

Main Techniacl Specifications:

Technique Parameter of blow molding machine:

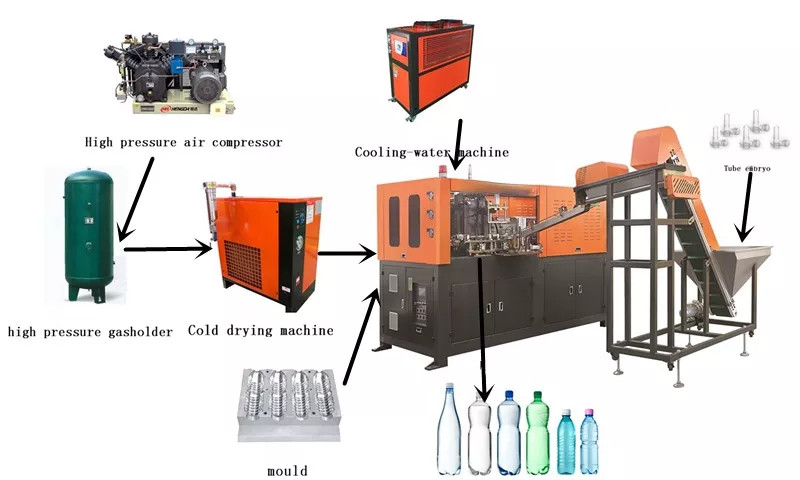

Functions of auxiliary equipments:

(1) Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

(2) Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

(3) Air filter is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny dust and solid particles.

(4) Air tank is to receive and supply air for the machine as storage.

HP air compressor:

Air Cooling Drier:

Packing &Delivery

1. the drinking pure water filling machine is packed by wooden case.

2. The delivery date of drinking pure water filling machine is within 30 days after payment.
