marker pen barrel injection machine

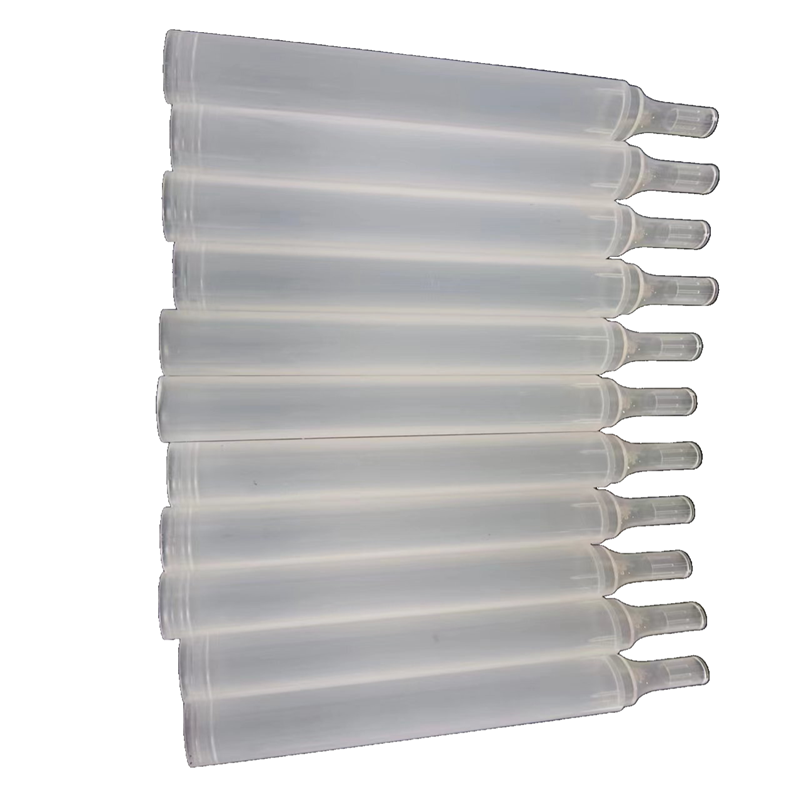

It's used to inject pen barrel tip etc.

EMAIL

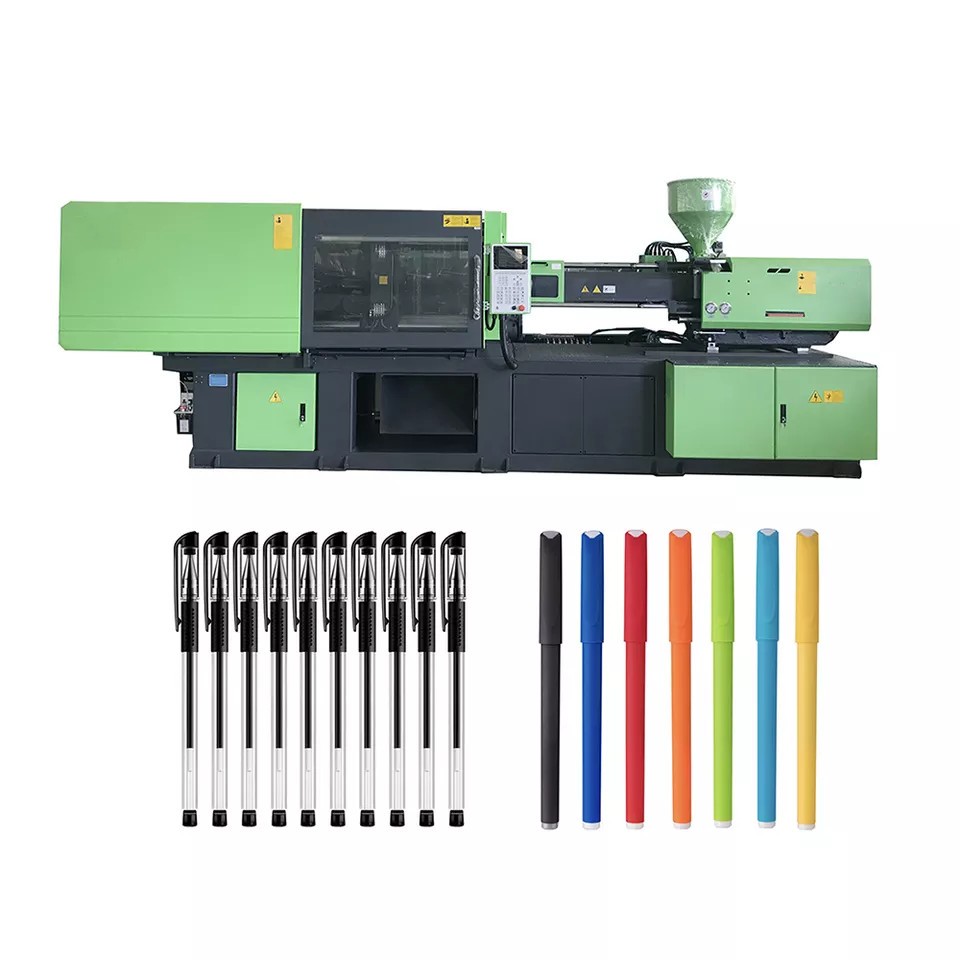

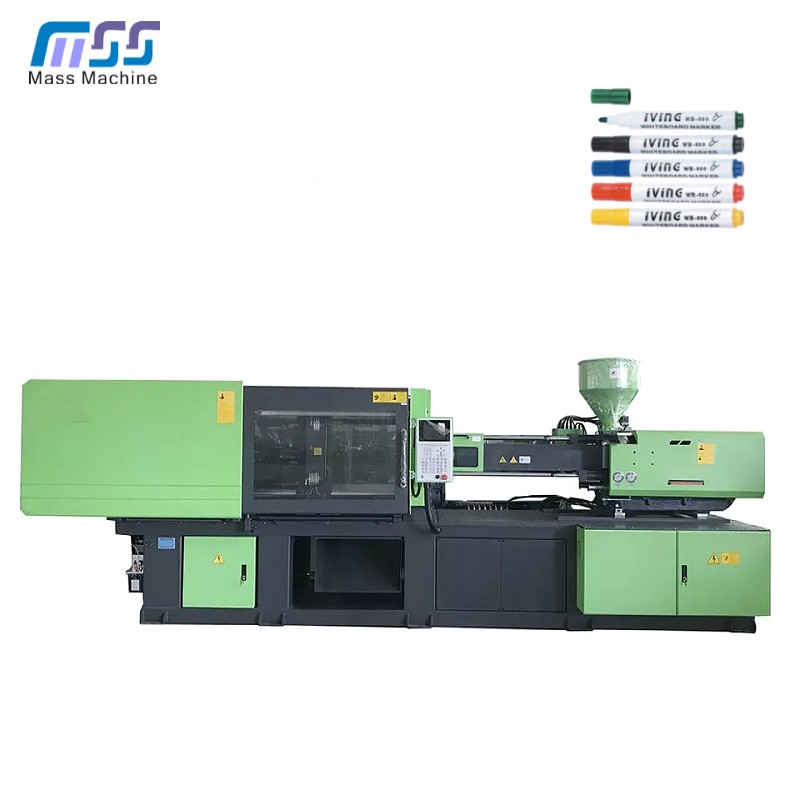

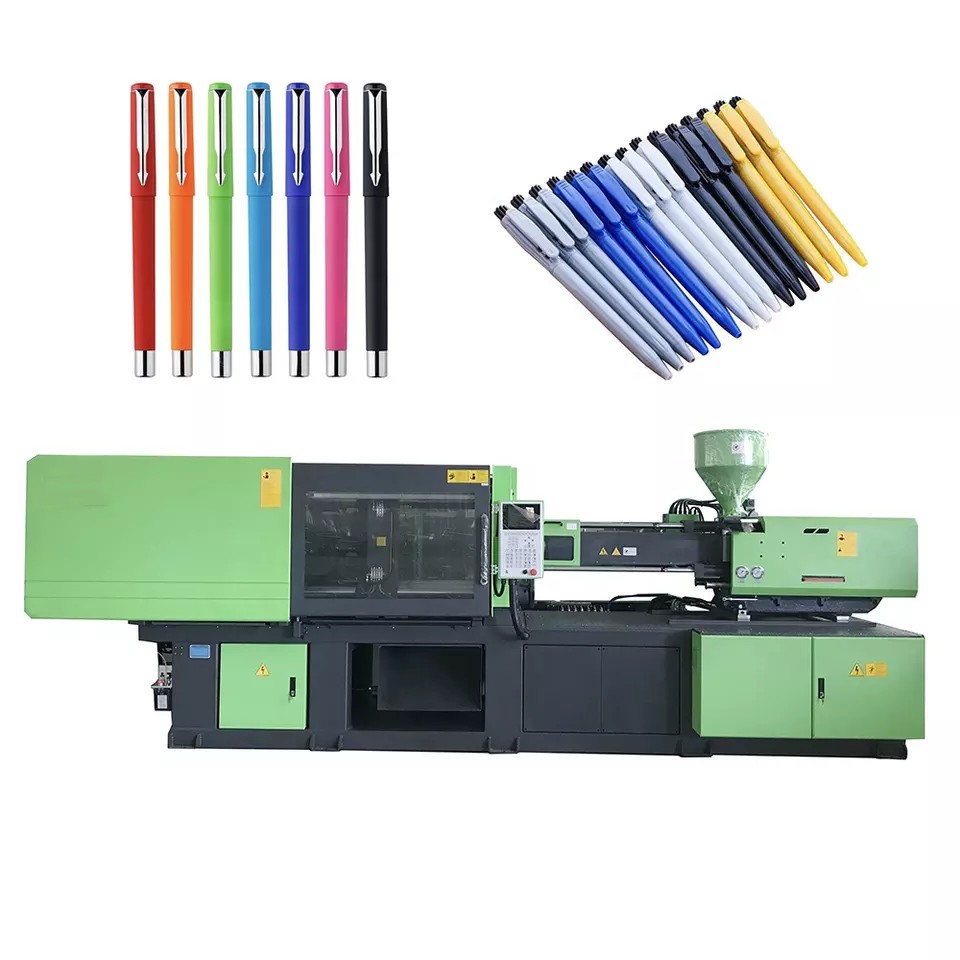

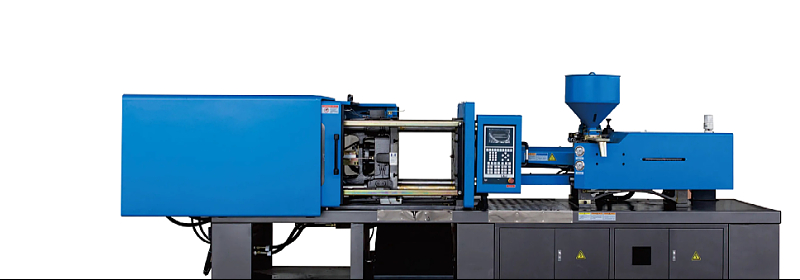

Marker Pen Barrel  Injection Machine

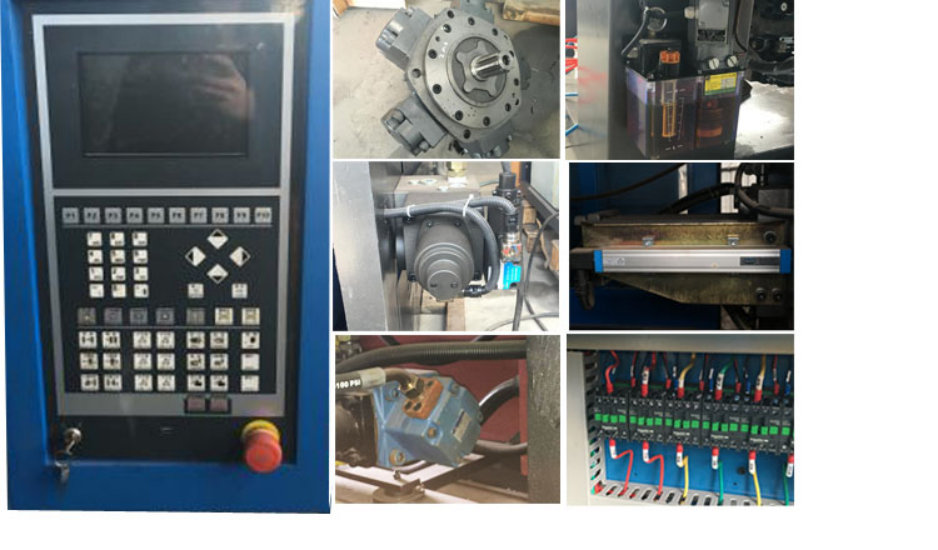

CONTROL SYSTEM

All-digital control system uses dedicated controller, multiple CPU processing division,a multi-functional

 automatic fault detection, alarm system, certificates 99 mold ofprocessing procedures, with remote control

 interface. System is of high stability andresponsiveness. System uses color LCD, man made interface for

 easy operation and with a number of peripheral interfaces.

HYDRAULIC SYSTEM

Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level

pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than

75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system

of flow and speed of response, and makes the whole machine reach the best performance.






Mechanical Vertical-Compression Structure Applied by  Injection Molding Machine

1.100% clamping use ratio, 10%-20% higher than that of traditional structures;
2. Less fins on the finished products;
3. 2%-6% raw materials saved from production than that of traditional structures;
4. Effective protection for the mould, molding board, and pull rod;
5. A opening stroke 10%-20% longer than that of traditional structures;
6. Less deformation caused by cooling of the products.

Specification





















Injection Part

Item/type

Unit

MA-180

Screw type


A

B

C

Screw diameter

mm

40

45

50

Screw diame-ter ratio

L/D

22

22

20

Theoretical injection volume

cm³

276

350

432

Injection volume (PS)

g

251

318

393

Maximum rate for inject-ion      to air

cm³/s

126

159

196

Injection pressure

MPa

215

169

137

Injection stroke

mm

220

Maximum injection speed

mm/s

111

Maximal Rotational Speed of Screw

r/min

210

















Clamping Part

Clamp Tonnage

KN

1800

Toggle stroke

mm

490

Distance between tie bars

mmxmm

465x418

Maximum mould height

mm

520x470

Minimum mould height

mm

200

Ejection stroke

mm

150

Ejector force forward

KN

45

Ejector force backard

KN

30

Amount of die thimble

Pcs

1+4















Others

System pressure

Mpa

17.5

Motor power

KW

18.5

Heater power

KW

9.95/1095

Quantity of temperature-control zones


1+4

Bucket capacity

KG

25

Oil tank capacity

L

230

Boundary dimension(L×W×H)

m

5.5x1.5x1.9

Machine weight

Ton

5.6
