simple ballpoint pen assemble machine

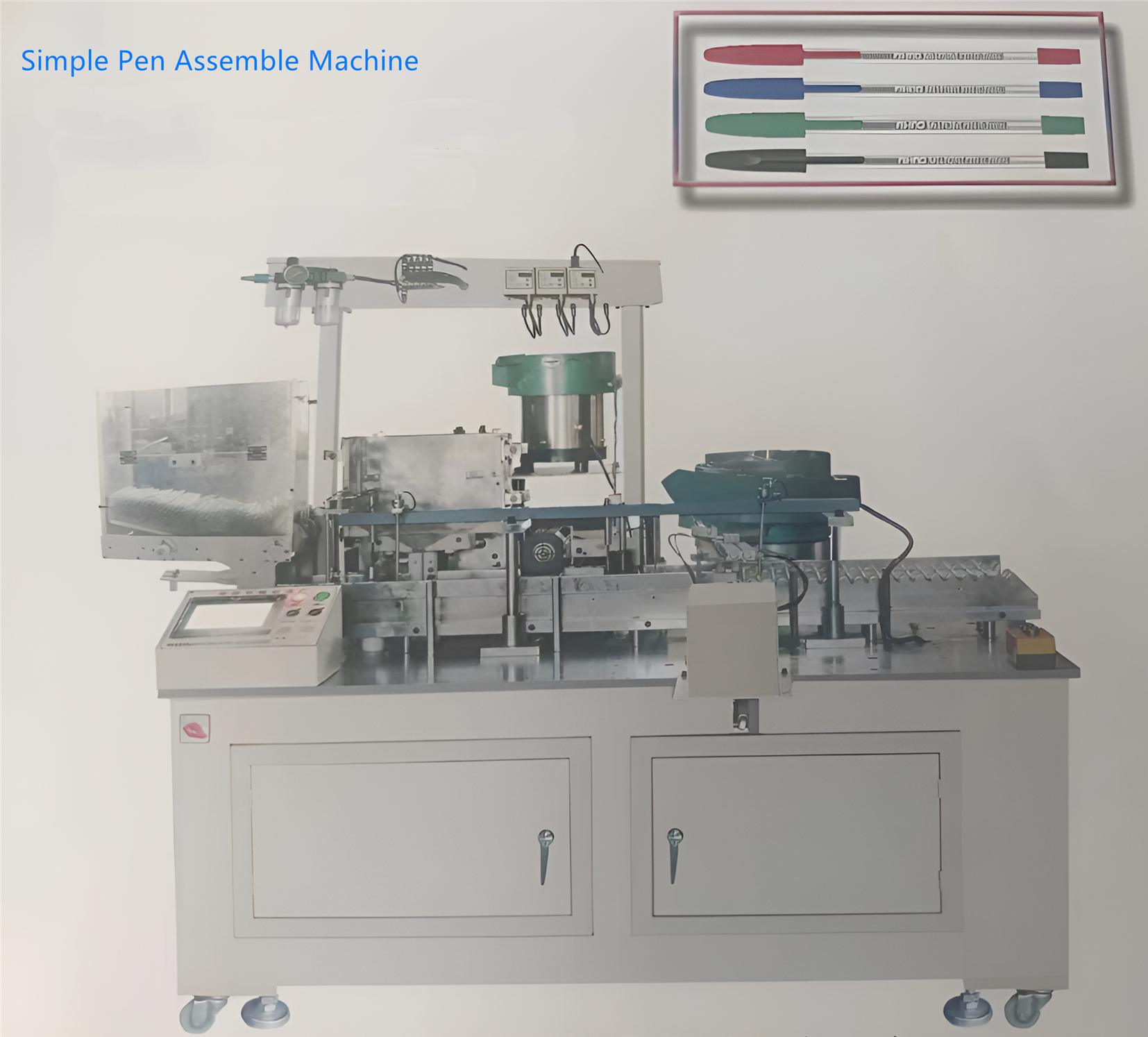

MS-YZ100 simple ballpoint pen assembly machine

machine characteristic:

The machine is a microcomputer with man-machine interface control, using frequency conversion speed regulation, so that the machine operation is simple and

 effective to improve work efficiency;

Micro computer contains large memory function, can effectively automatic memory poor products, automatic shutdown;

Intelligent feeding system is adopted, and the pen can automatically divide the direction;

The machine is designed and manufactured by precise CAM ratio, which makes the machine energy-saving, long life and simple maintenance.

Work flow:

Automatic pen bar - automatic pen refill - automatic pen tip - automatic pen tip - automatic tail plug - automatic pen cap finish

Ball Point Pen making machine

  Intelligent control parts :operation easily by use of high quality PLC and touch panel,along with variable frequency regulating speed technology,else saves energy
mechanical transpiration parts:take the use of high efficiency cams combined the precision machinery cam,are driver by the same main power,which can make improvement the stabilization and life span.
  automatically feeding system: feeding by way of vibration,the machine hands installation accurately,ensure the feeding stabilization and security high quality

working speed:50-60pcs/min

Work station:double type

power:1.5kw 380V 3P 50Hz

air : 5-6kgf/cm²

Working type :Automatically

Worker:1 people

Cylinder:Airtac Taiwan

Ball Point Pen making machine Show:
