Juice/Tea Hot Filling Machine 3000BPH RCGF 14-12-4

       3000BPH Juice/Tea Hot Filling Machine RCGF 14-12-4

working principle and technology:

1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.

Features

A) Washing part of Bottled Mineral water filling machine:

l All 304 stainless steel rinser heads, water spray style inject design, save water consumption & more clean

lI 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

lII 304 stainless steel washing pump

B) Filling Part of Bottled Mineral water filling machines:

l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

lIFilling volume adjustable in fine rank, same liquid level after filling

lII All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

lV 304 stainless steel filling pump

V no bottle no filling

C) Capping part of Bottled Mineral water filling machine:

l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

lI All 304stainless steel construction

lII No bottle no capping,

lV Automatic stop when lack of bottle

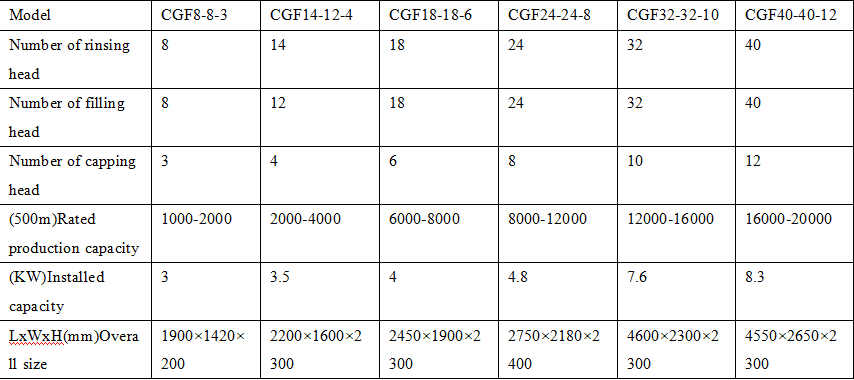

Technical Parameter

Packing &Delivery

1. the drinking pure water filling machine is packed by wooden case.

2. The delivery date of drinking pure water filling machine is within 30 days after payment.
