Automatic Shrink Sleeve Labeling Machine

 Automatic Shrink Sleeve Labeling Machine

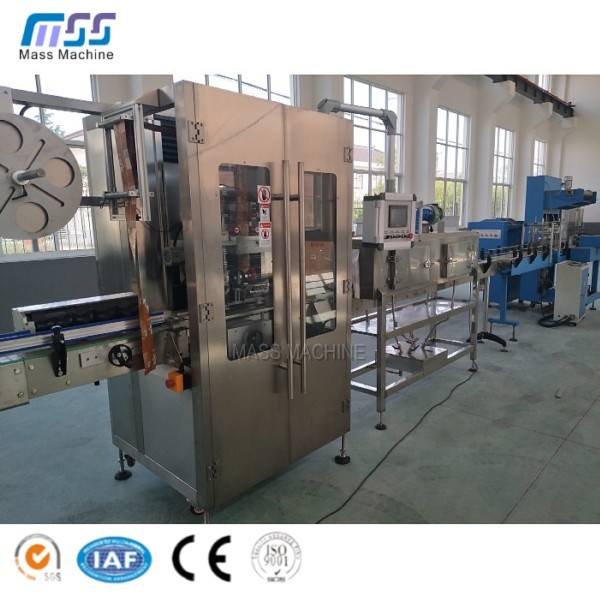

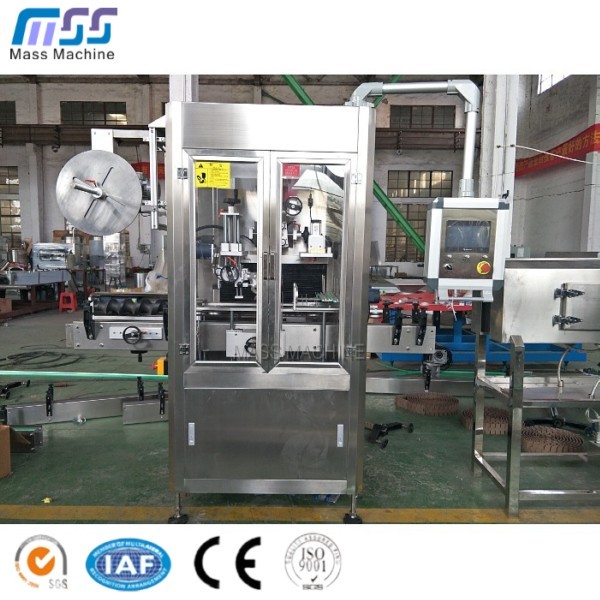

1. Automatic Bottle Sleeve Labeling Machine
Function:
All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.
Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: A more stable for label delivery.
Synchronous bottle divider: A more stable transmission for bottle.
Bottom set of label brush: A more precision for casting label.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.
Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types:
Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

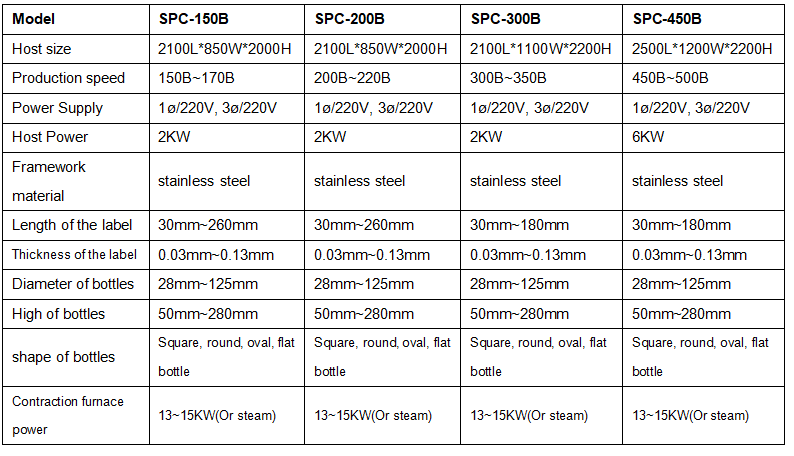

Technical Parameter:

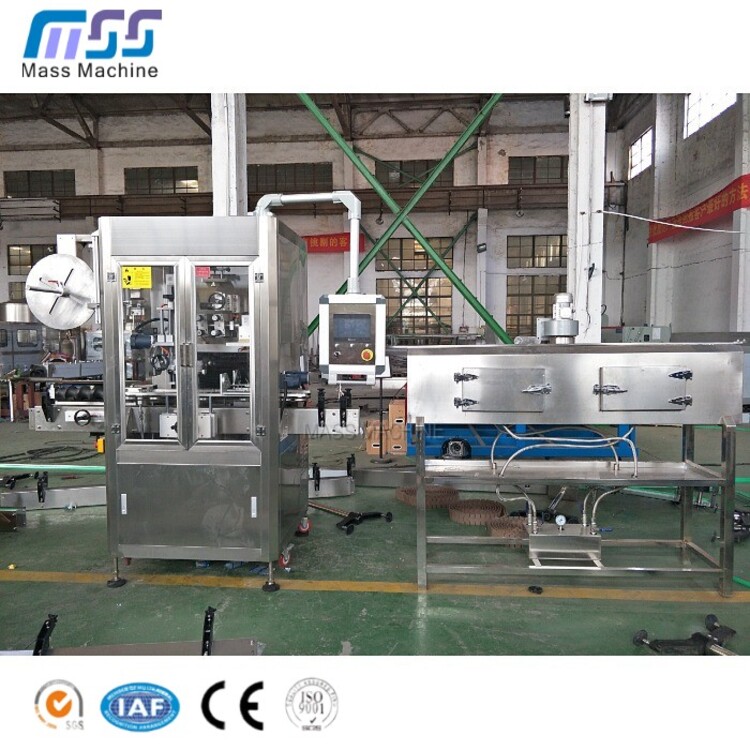

Photos:

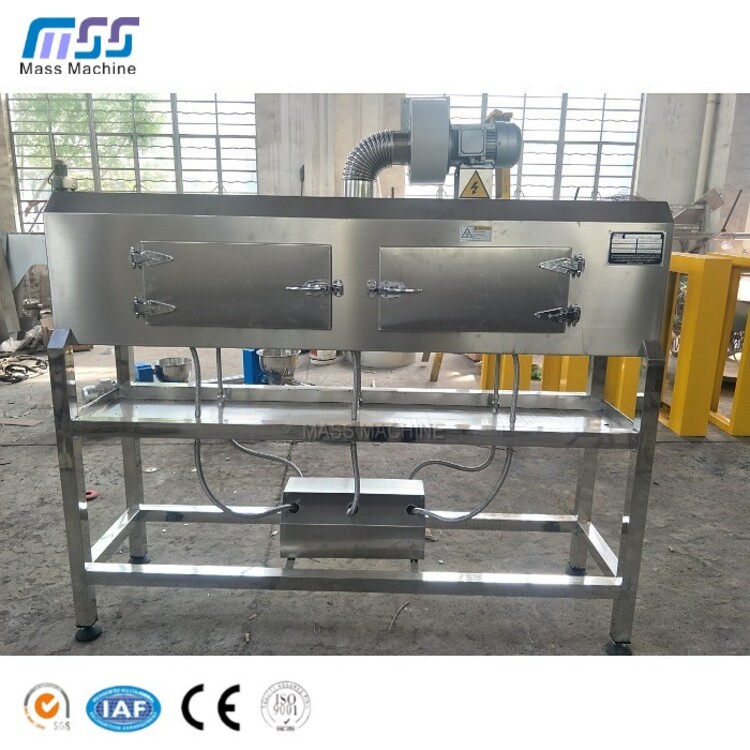

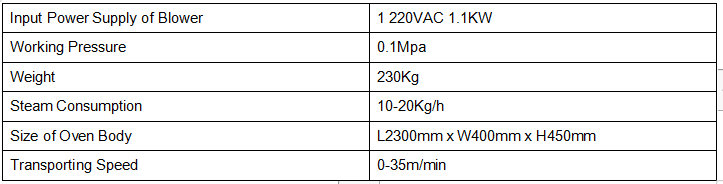

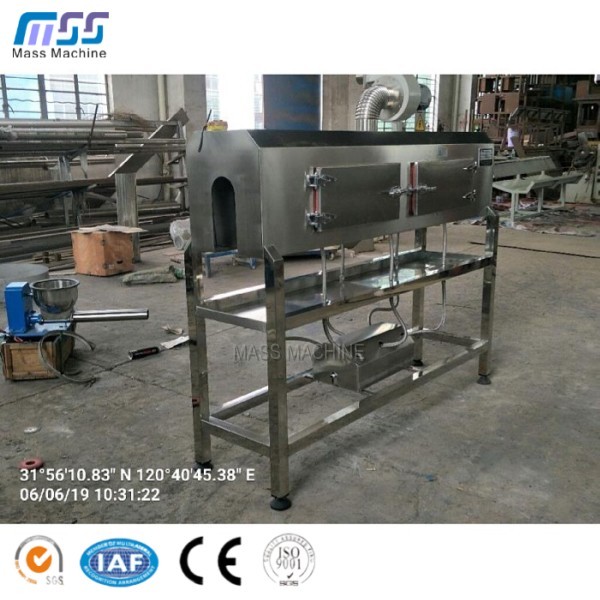

2.Shrink Tunnel

In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
Special Manufacture
Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

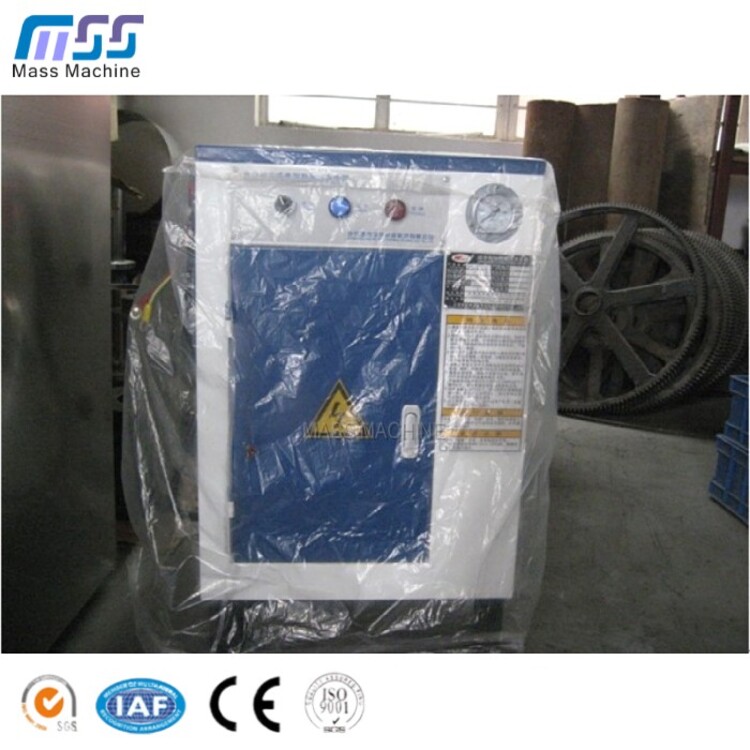

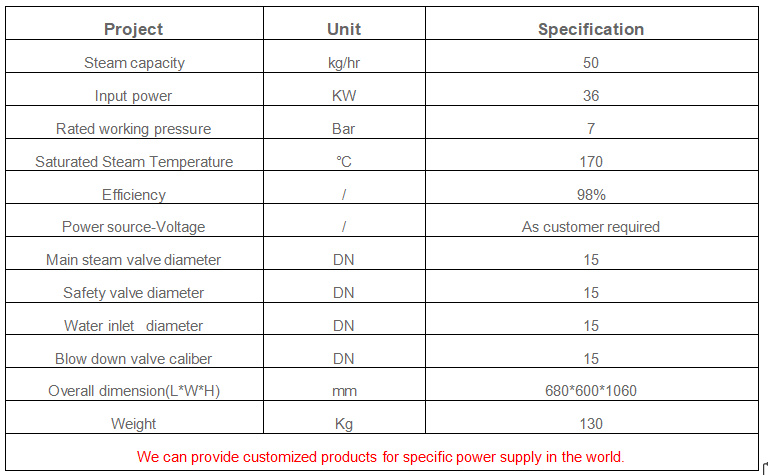

3.Steam generator

  The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Packing &Delivery

1. the drinking pure water filling machine is packed by wooden case.

2. The delivery date of drinking pure water filling machine is within 30 days after payment.
