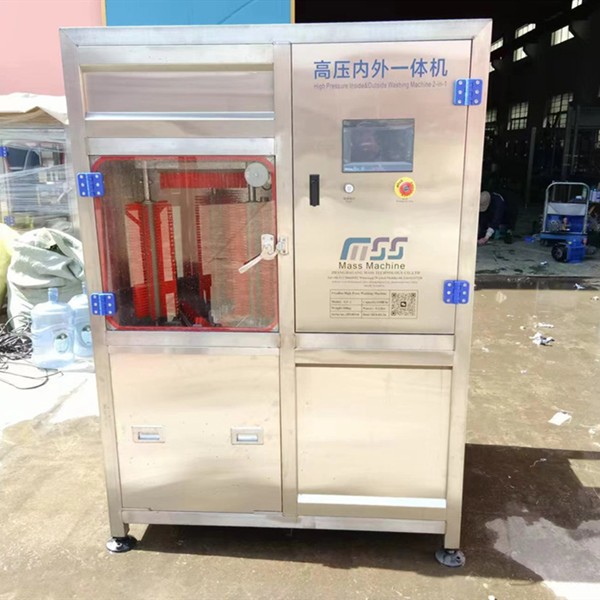

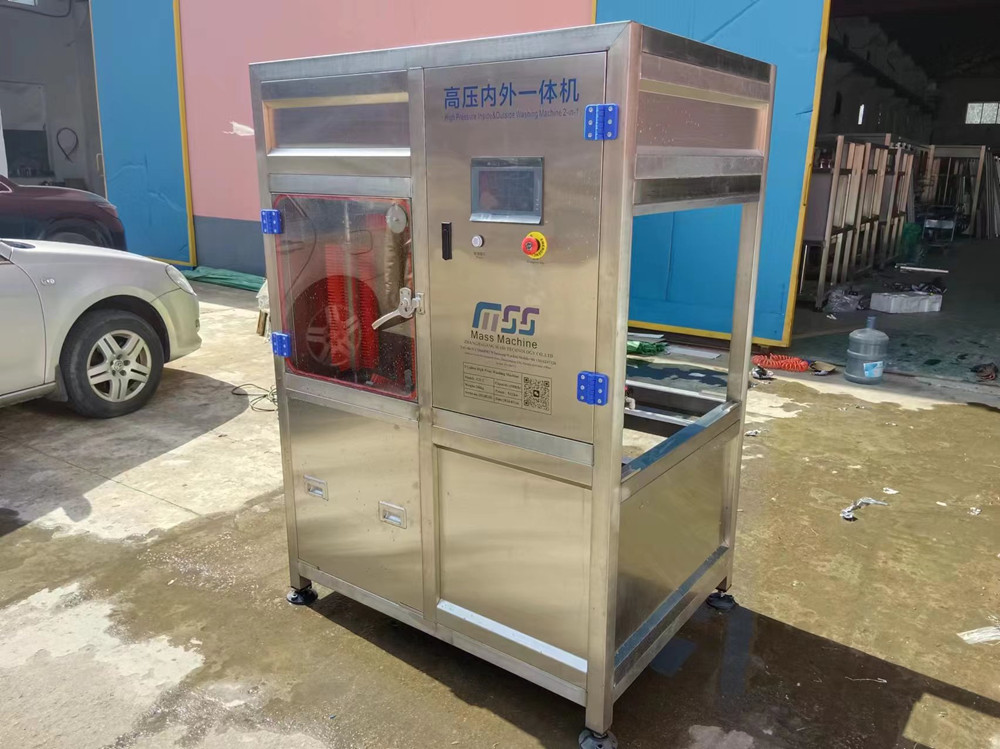

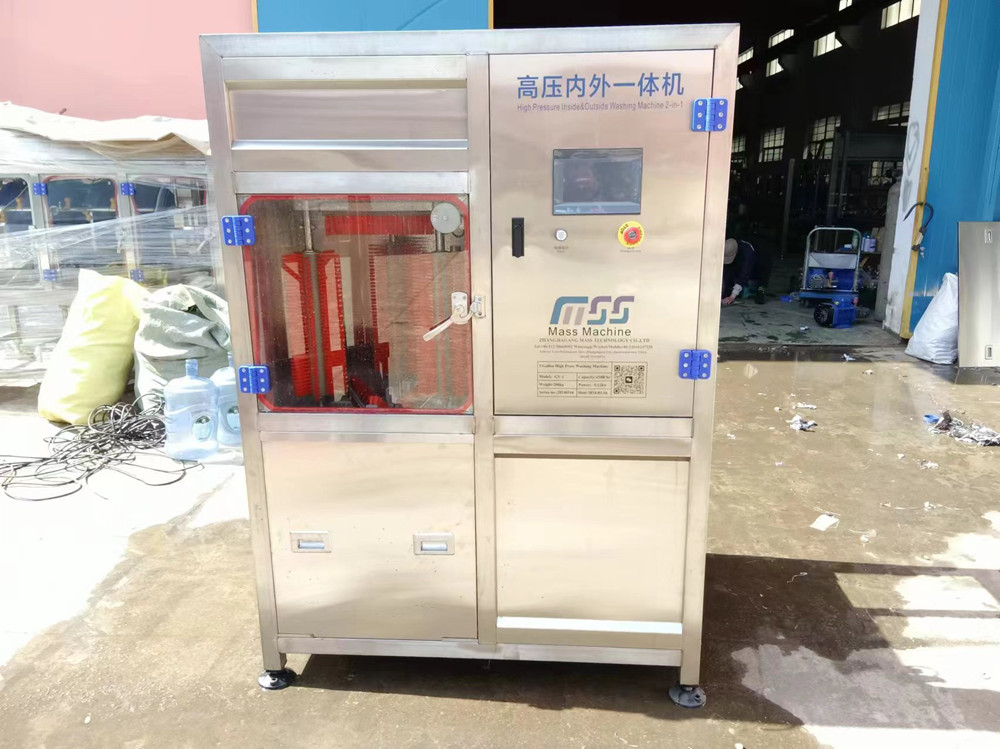

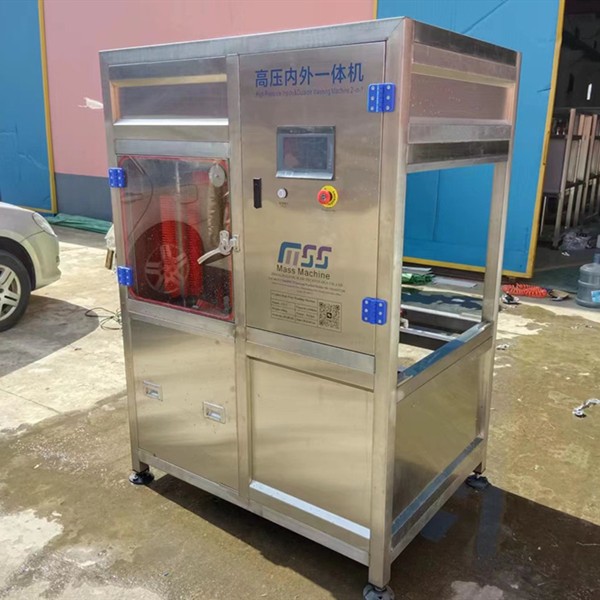

High Pressure 3-5 Gallon Bottle Washer

The high-pressure inner and outer drum washing machine is a revolutionary product of the drum washing machine. It is the killer of stubborn stains on green moss: the high-pressure inner and outer drum washing machine can solve the pain points of washing in water plants.
360 degree * * * high-pressure water jet cleaning. Forward and reverse solve the problem of difficult cleaning of the inner wall and bottom of irregular barrels.
20-120 kg pressure regulation. Clean with a brush outside.
There is no residue on the inner and outer walls, and there is no wear or scratch on the barrel.

EMAIL

High Pressure 3-5 Gallon Bottle Washer Bucket Barrel Semi Auto Brush Washing Cleaning Machine / Equipment With Single station

General: The structure adopts high-pressure internal rinsing, the precision high-pressure nozzle pressure is adjustable from 2-15Mpa, rotates in the bottle during working;

 and the external brush rotates and spray water, so as to achieve the effect of overall cleaning . It is a new product developed on the basis of introducing similar products

at home and abroad and combining our factory's many years of production experience. This machine has the advantages of high degree of automation, compact structure,

 beautiful appearance, convenient operation and maintenance, safety and reliability, and continuously adjustable production capacity.



Advantages

1. Water supply mode, users can reasonably choose circulating water supply, non-circulating water supply and double water supply mode according to their needs.

 2. The brushing effect is good, and it is suitable for all-round effective brushing of the inner and outer walls of the barrel.

3. The operation is simple, only one operation of opening and closing the door is required to complete the whole scrubbing process.

 4. Confirm the motor rotation direction. Then turn on the power switch on the panel, and then open the flip cover to test run.

5. The high-pressure flushing barrel water machine is suitable for 3-gallon and 5-gallon drinking water recovery barrels. The separated lid is not easy to wear and deform,

and can be reused after disinfection, which improves the utilization rate of the barrel lid.




Item

Parameter

Applicable bottle volume

3-5 gallon

Gallon bottle diameter

∮275mm

Gallon bottle height

490mm

production capacity

100-150BPH

Number of high pressure inner rinsing heads

1

Number of external brushes

3

Air consumption

500L/min

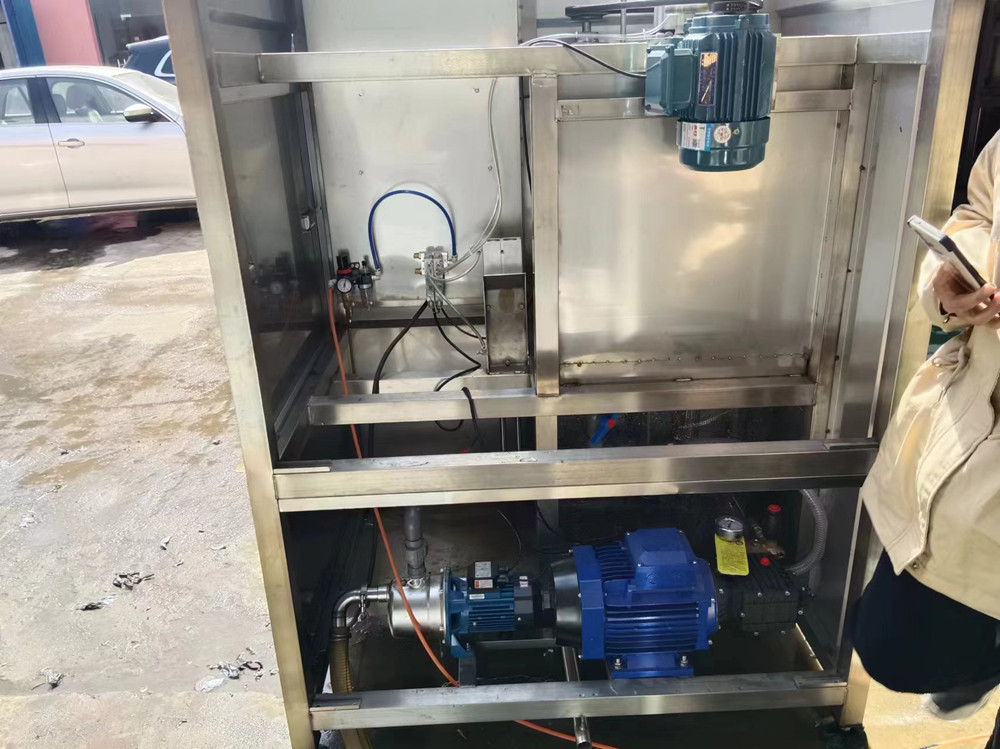

Power

Motor Power

4KW

Washing water pump

1*0.37kw

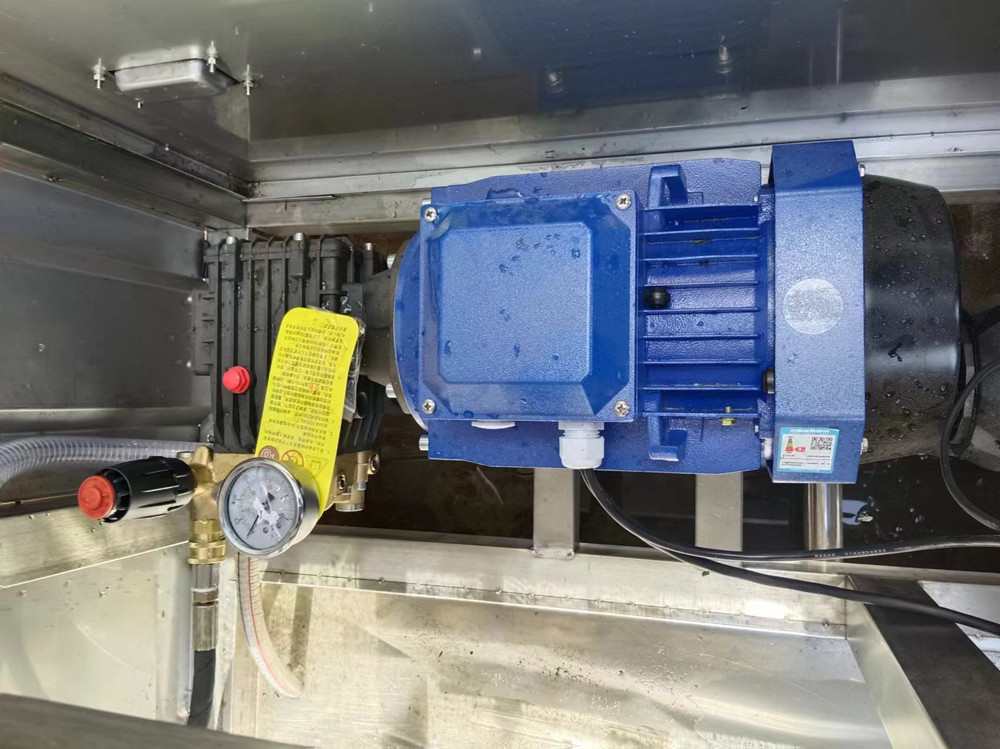

HP rinsing pump

1*4KW

Size

1200*900*1700mm

Weight

150KG
