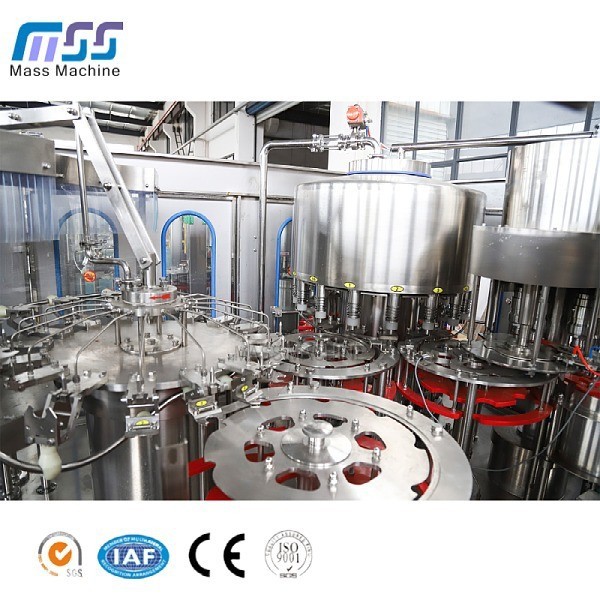

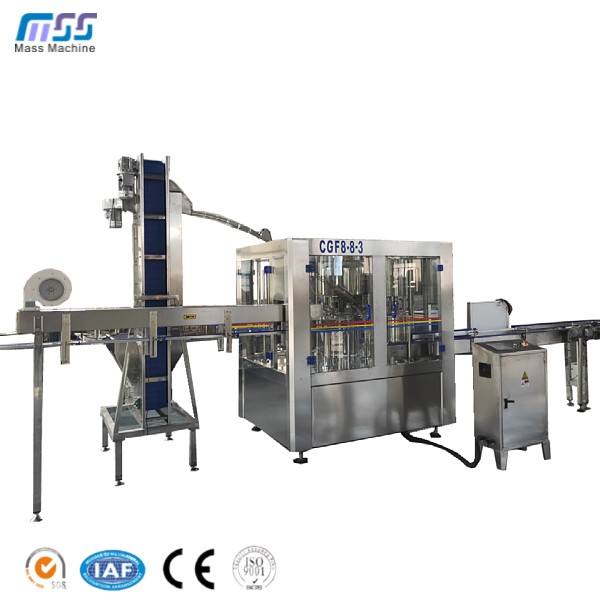

2000bph 200ml To 1.5 Liter Pure Water Mineral Water Filling MachineCGF8-8-3

    3000BPH  water bottling machine

The bottle filling plant from Mass machinery  is based on the introduction of foreign technology,combined with our years of manufacturing experience .

The water filling machine  combines Washing,Filling and Capping from jst machinery ,with scientific and rationaldesign,beautiful shape.it is easy in

maintenance ,with automation.This water packaging machinery is mainly used for water filling .

1. Rinsing empty bottle, filling, and capping functions from jst machinery are integrated in one system, fully automatic synchronized working.

2. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

3. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.

4. No Bottle No Filling, no caps no capping, no caps auto stops

5. When bottle jam auto stop, machine accident auto stop

6. Open the window when machine running, machine auto paused

7. Heavy duty stainless steel filling pump & rinsing pump

8. Food grade 316L or 304stainless steel contact parts, smooth & fine polish,no dead angles

9. Adopted first class component from Mitsubishi, OMRON, SIEMENS, With PLC, invertors control, touch screen, sensor, switch and other electric parts.

10. Machine and cable arrangement designed according to CE standard and all safety standard.

Product Description

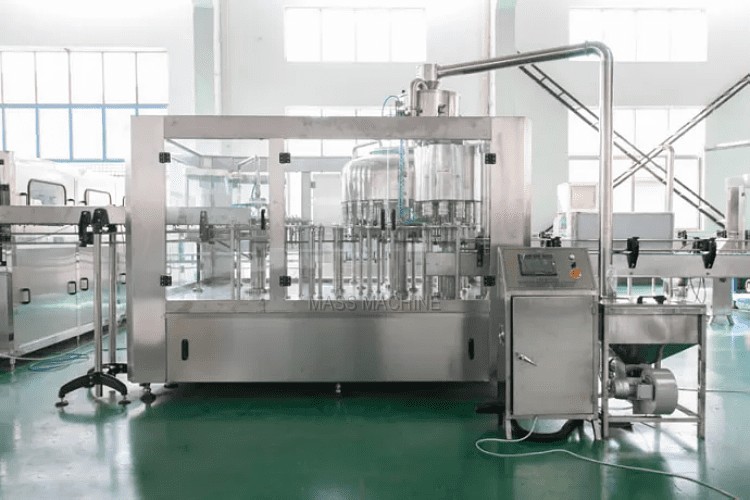

The drinking pure water filling machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

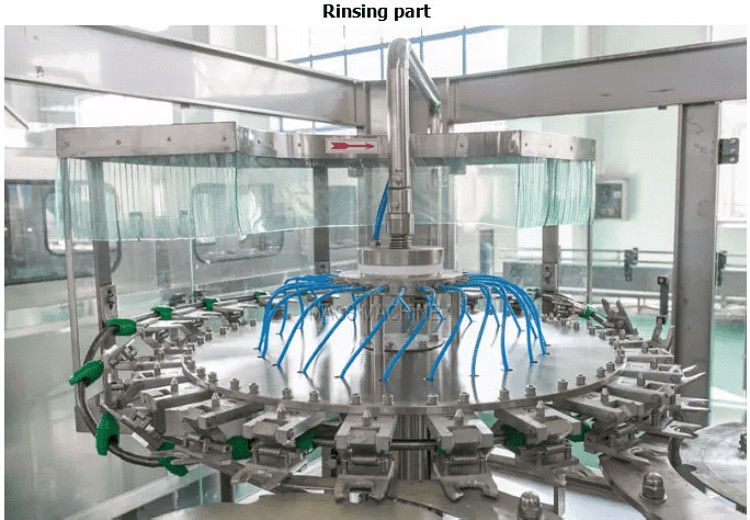

1.Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

2.The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.

3.The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.

4.The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.

5.Rinsing time can be guaranteed for 4 seconds.

6.By adjusting the height of the rotary parts to adapt for different bottle height

7.The motivation is derived from the driven system in the framework passed by gear.

8.The supplying of rinsing water is controlled by solenoid valve

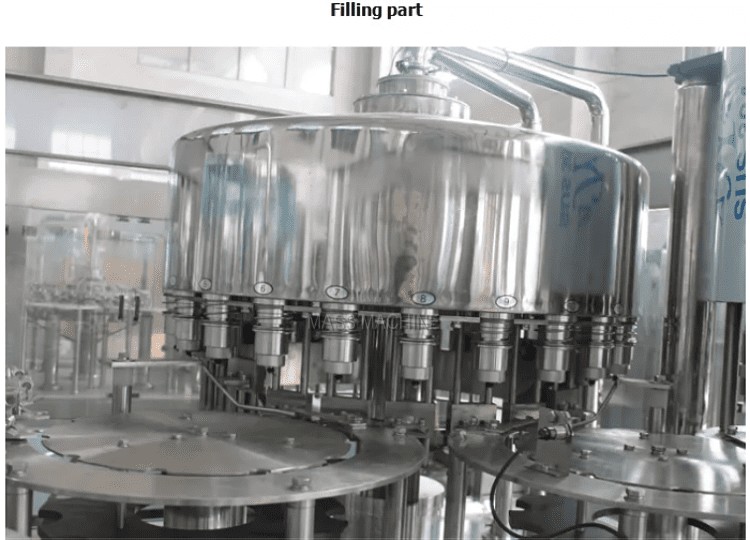

1. Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.

2.The rotate plate is made of SUS AISI304, large flat toothed bearing.

3.The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.

4.The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

5.This filling system has an automatic temperature control system.

6. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

7.The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.

8.The motivation of the filler is derived from the driven system in the framework and passed by gear.

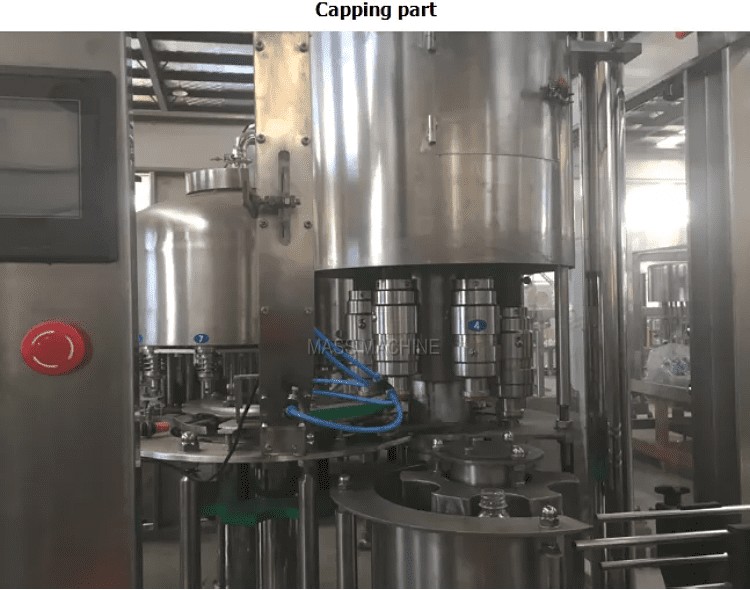

1.Introduce most advanced cap sealing technology called France “ZALKIN ". With the help of expert from institute of electro mechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stationary), while adopting “ZALKIN” technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality)

2.The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

3.The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.

4.A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

5.A bottle inlet detect switch is settled on the screwing capper.

6. There are aseptic nozzles between the transition poking wheel and filling parts to rinse the product rested in the bottleneck screw parts.

7.There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.

8.By adjusting the height of the rotary parts to adapt for different bottle height.

9.The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.

10.The main parts of the screwing capper are processed by the digital-control processing center.

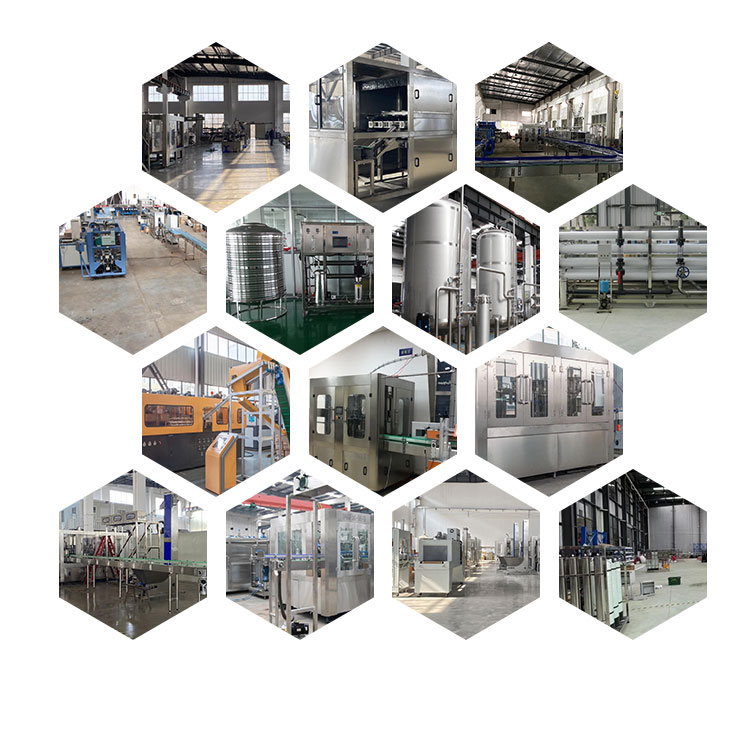

Cooperation cases

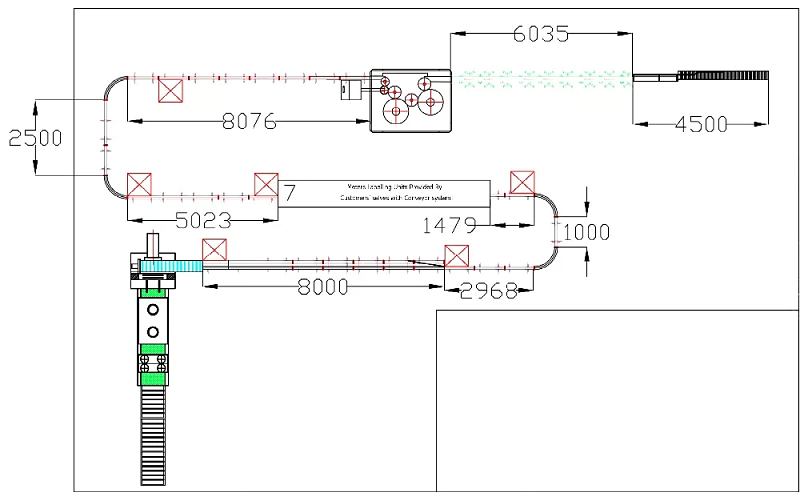

As shown from picture, we gave depth customizations to our customers. we could design drawings for the factory to produce ideal drinking which are our customers really want. No matter which type of customers, new starters or Industry leaders, personal or purchasers, we can provide Intimate service. Our machines are sold to cities in China and over cross to Europe, American countries, Africa, Oceania, Middle east and Asian countries. We sincerely hope to cooperate with you for a bright future!

Packing &Delivery

1. the drinking pure water filling machine is packed by wooden case.

2. The delivery date of drinking pure water filling machine is within 30 days after payment.
