6000l RO Water Treatment Plant

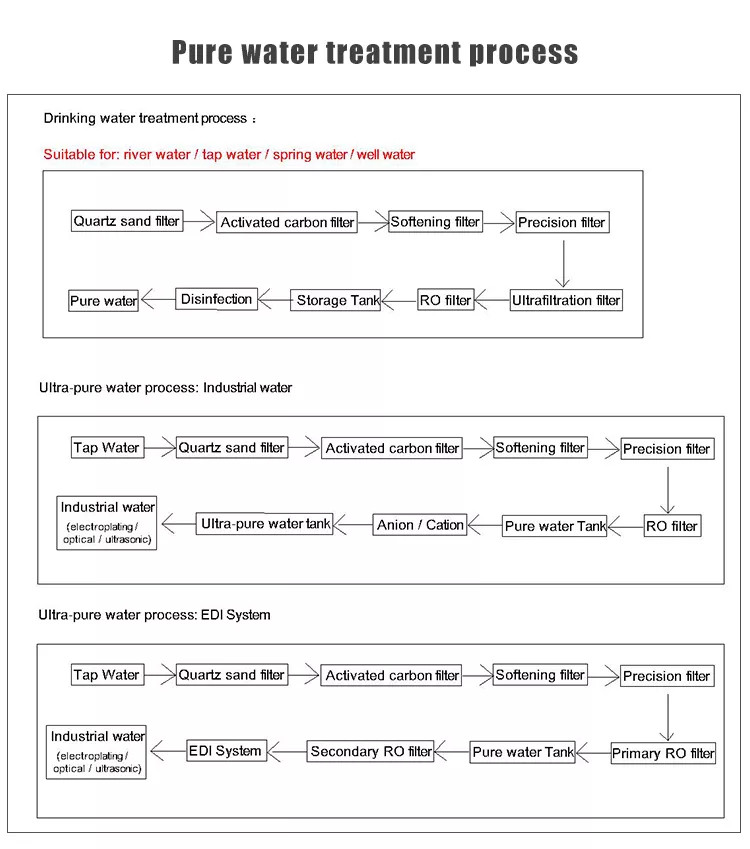

Equipment of Pure Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. The treatment capacity is 0.5-50 ton/hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

RO Technology Description：

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.

It is effective to remove asbestos, many taste, colour and odour producing chemicals, particulates, total dissolved ions (calcium,magnesium,sodium,ammonia, boron, chlorides, manganese, sodium, ammonium ions...), turbidity and radium.

RO system is widely used in water supply treatment, purification for tap water, and brackish water, pure water and ultrapure drinking water production, which can be the best choice for power stations, electronic industries,and medical residential areas. It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed/source water

*Raw water Range we can do: Brackish water TDS less than 20000ppm, ground/well water, city water,rains,river/lake water ... or according to customer's requirements

*Capacity we can do;500lph,1000lph,2000lph,3000lp...50000lph,or according to customer's requirements

*Output water application:drinking/irrigating water, commercial bottled selling water,human consumption drinking water...or according to customer's requirements

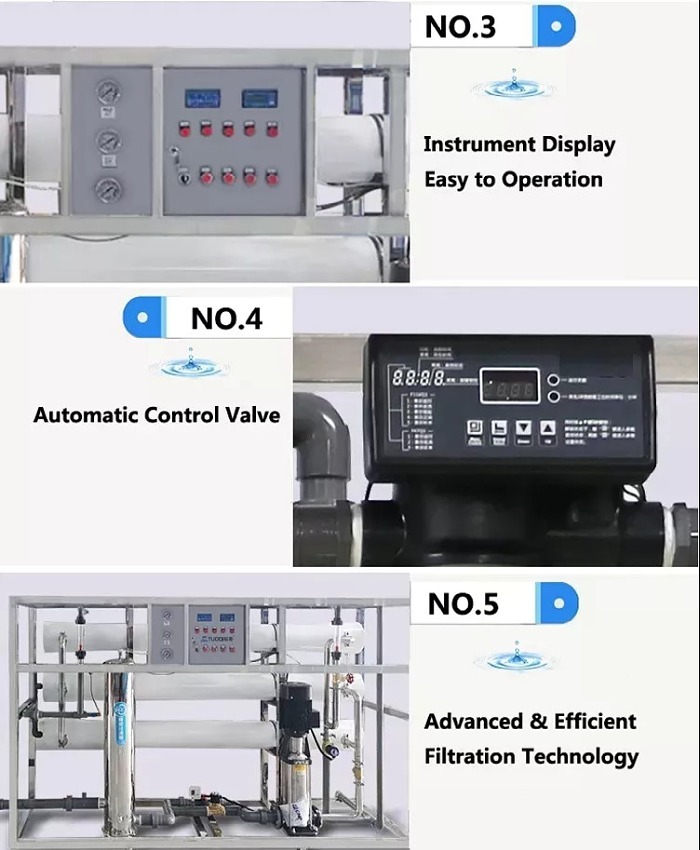

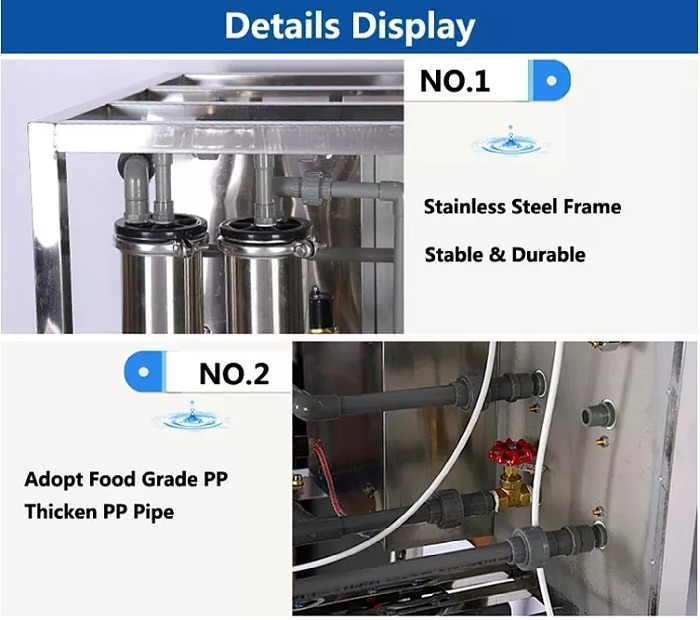

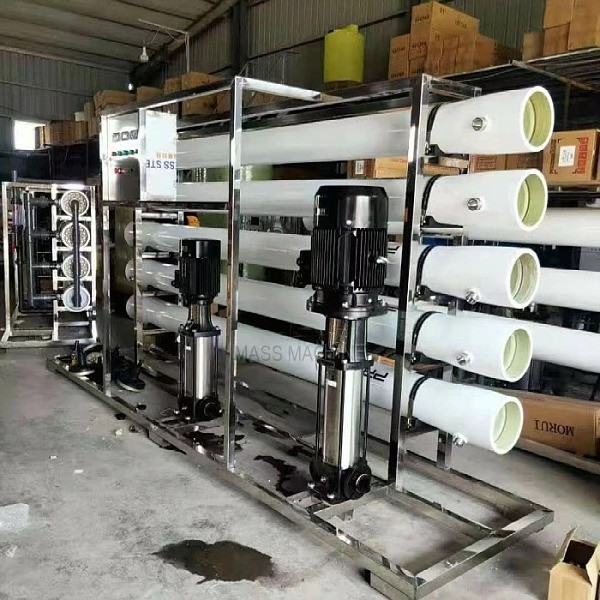

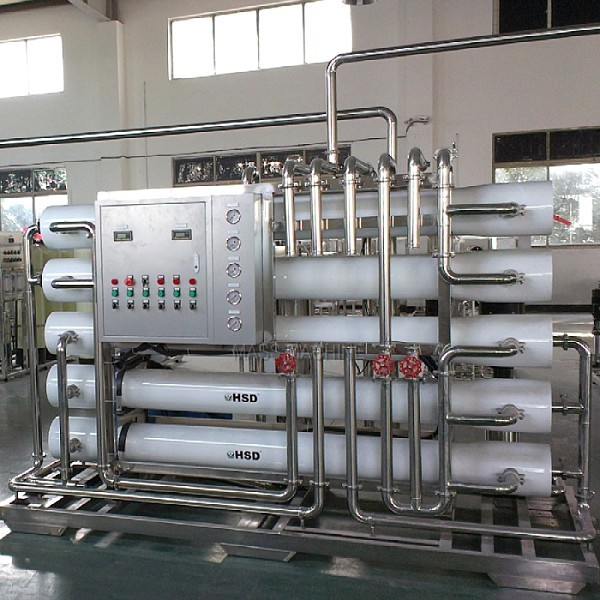

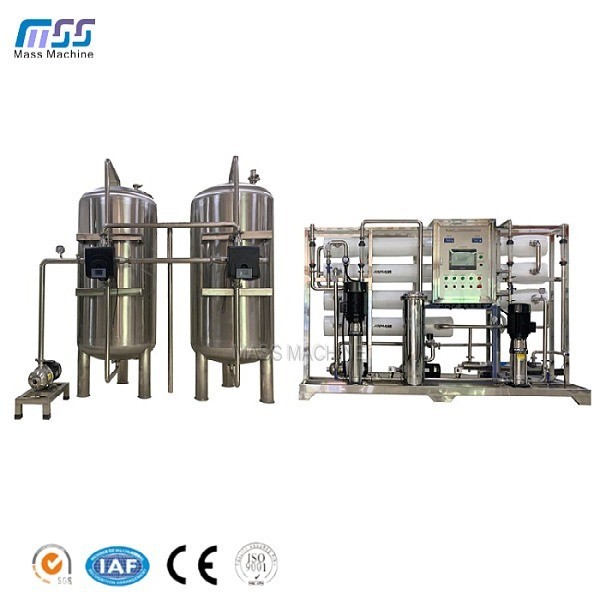

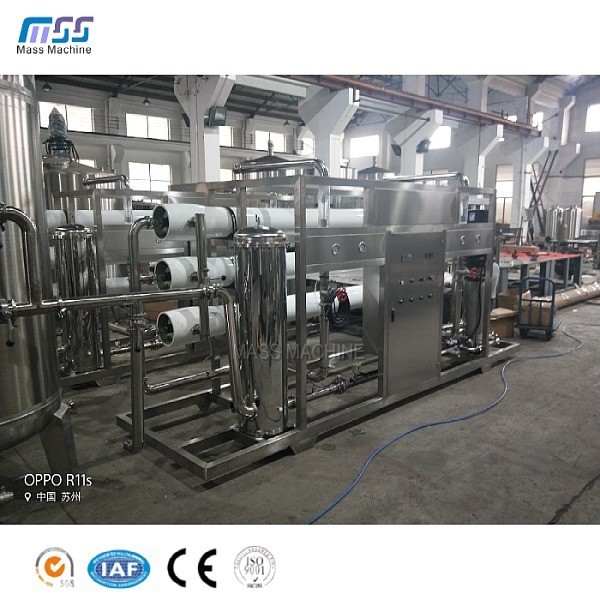

Detailed Images

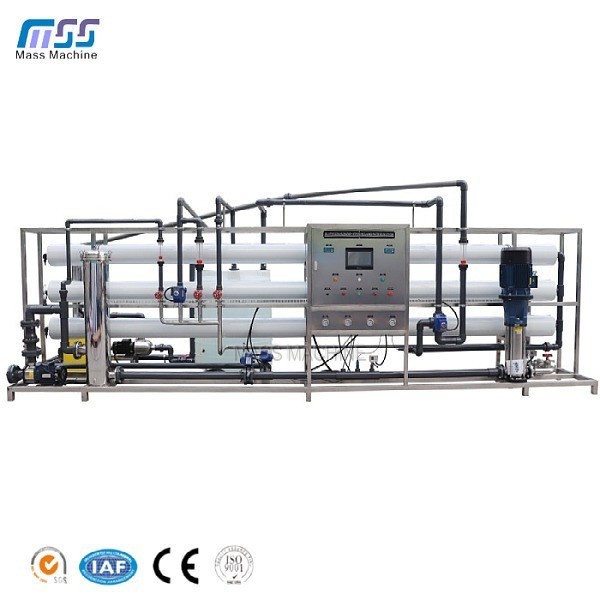

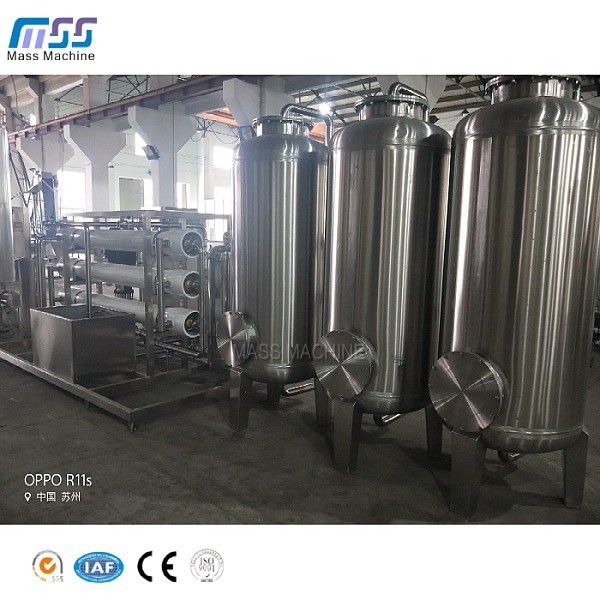

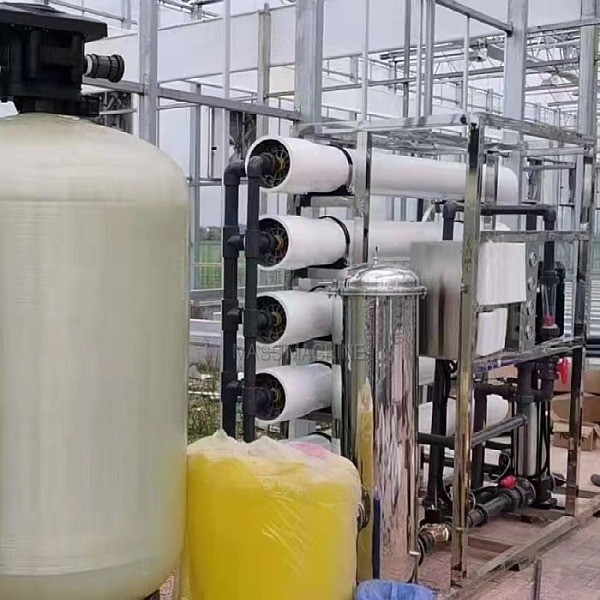

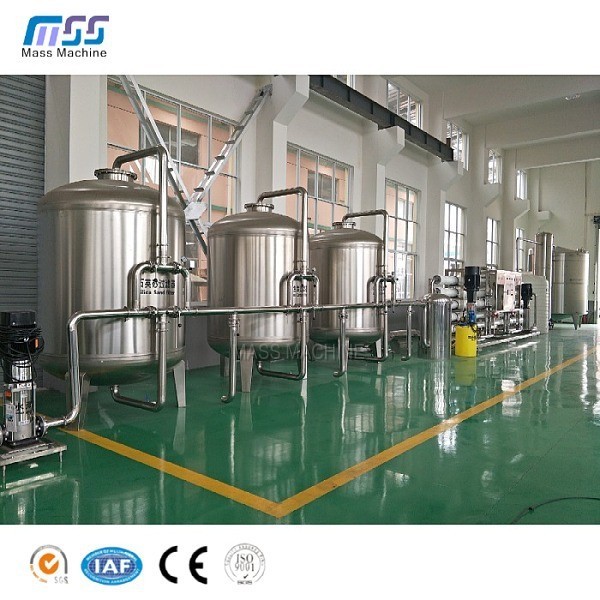

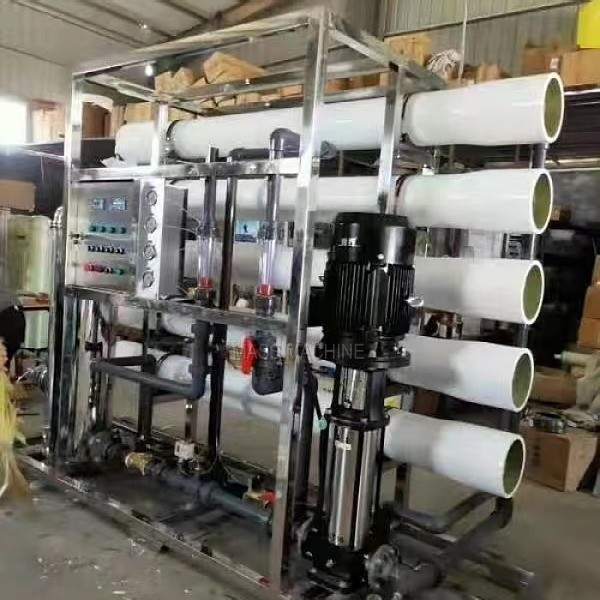

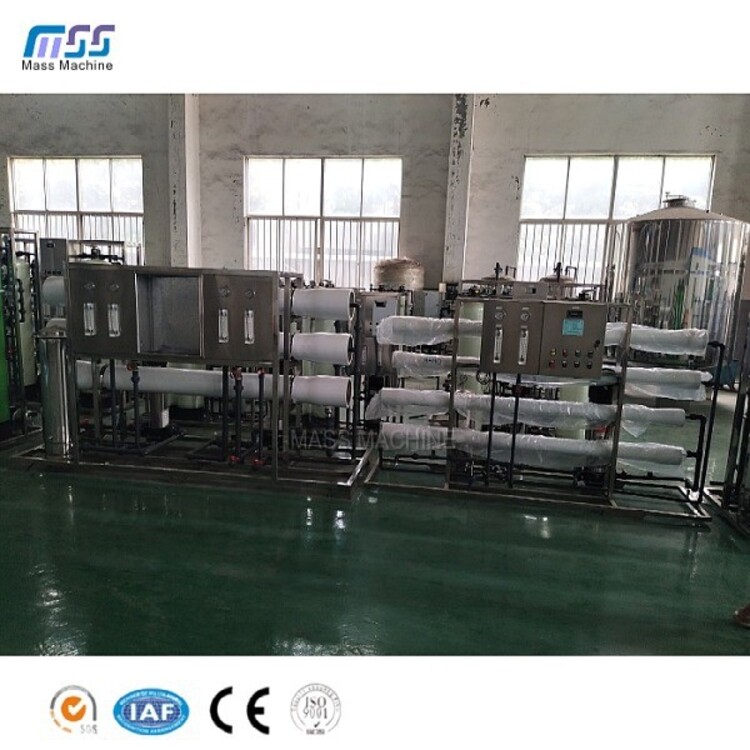

6000l RO Water Treatment Plant

6000l Ro water treatment (12).jpg

How to get suitable quotation

Please send the following details to this supplier.

1.Your source water details(city water or well water,river/lake water....?). If well/lake/river water, do you have water analysis report for it? better to send water TDS/conductivity?

2.What's the capacity for the RO system you need? (we have experience from 500lph to 180000lph)

3.What's the output water application?(drinking water? irrigating water? food&beverage company......?

Product Description

6000L/H brief details(for river/underground water)
1.Electricity supply:220v-415v, 50hz,3 phases Total power:Customized------Can be customized
2.Capacity:Min 500lph, Max up to 100000lph
3.Membranes Quantities:according to capacity, DOW(Dupont) or Toray, Vontron
4.Security filter:based on capacity
5.Pumps: 1 piece raw/feed water pump, 1 piece high pressure pump CNP, European Brand can be options
6.Uv sterilizer/Ozone for optional
7.CIP washing system, anti-scale dosing system

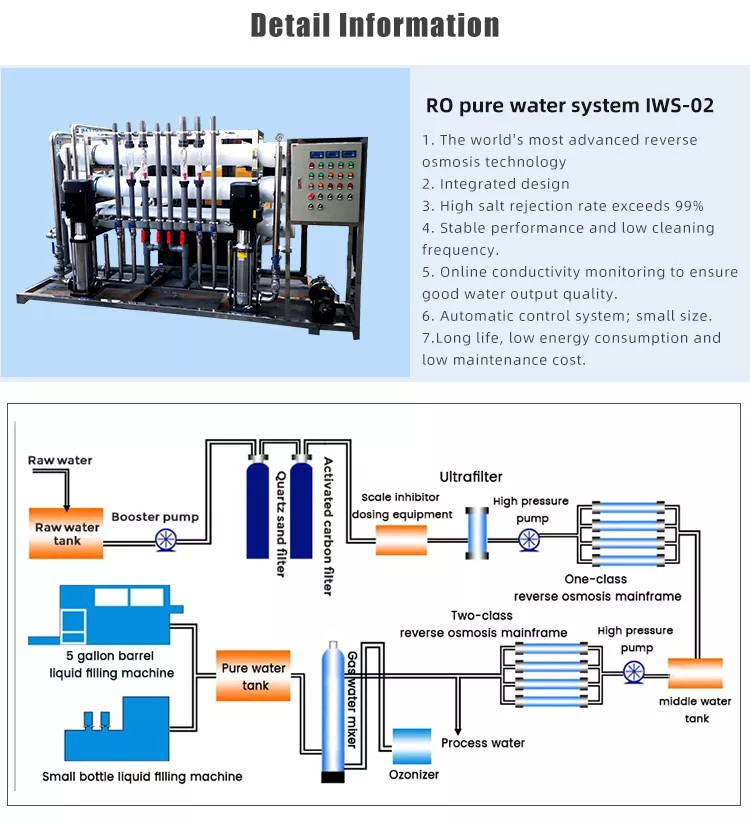

Ro system technical parameters
Item Name	Brand	Material	Function
Raw Water Pump	CNP/Grundfos/Danfoss	SUS-304/316	Provide pressure for filters
Quartz Sand Filter	Mass	FRP/ Ss-304/316	Filtrate sediments...
Activated Carbon Filter	Mass	FRP/ Ss-304/316	Obsorb odor, smell, color, irons, chlorine... to make clear water
Anti-scalant chemical dosing system/Water Softener	SEKO		Soften water, protect RO Membranes
Security filter	Mass	FRP/ Ss-304/316	Remove colloids larger than 5micro
High pressure pump	CNP/Grundfos/Danfoss	SUS-304/316	Provide pressure for Ro membranes
RO vessels &membranes	Domestic&DOW/Toray/Votron/Hydrau.	FRP/Ss-304/316	Remove dissolved ions,organic materia,bateria...
Solenoid valves, gauges,switch...	China	Cooper/Ss-304/316	To protect the machine underoperation
CIP Washing system(optional)	Mass	Ss-304/ FRP/316	Membranes maitenance
Electronic control	PLC Program control system	Water quality detector,AC contacter,Air switch,indicator light,knob switch,electrical miscellaneous pieces...
UV/Ozone(optional)	USA/Dahuang	Remove some baterial like coliform,pseudomonas aeruginosa...(Sterilization)
