Highlight pen assemble machine

It's used to assembly refill, barrel, clip, knock, gear and spring to make finished pen.

EMAIL

MS-YG200 Highlighter automatic assembly machine

machine characteristic:

1、 the machine is a microcomputer with man-machine interface control, the use of frequency conversion speed regulation, so that the machine operation

 is simple and effective to improve work efficiency

2、the microcomputer contains large memory function, can effectively automatic memory of poor products, automatic stop;

3、 the use of intelligent feeding system, pen can automatically divide the direction;

4、 the machine completely adopts precision CAM ratio design and manufacturing, so that the machine energy saving, long life and simple maintenance;

5、 ink pump using vacuum pump, ink water can be adjusted freely, accuracy up to ±0.02g.

Automatic pen bar - automatic direction - automatic ink - automatic plug - automatic pen tip - automatic pen cap - Finished


Highlighter automatic assembly machine

Intelligent control parts :operation easily by use of high quality PLC and touch panel,along with variable frequency regulating speed technology,else saves energy
mechanical transpiration parts:take the use of high efficiency cams combined the precision machinery cam,are driver by the same main power,which can make improvement the stabilization and life span.
Automatically feeding system: feeding by way of vibration,the machine hands installation accurately,ensure the feeding stabilization and security high quality

working speed:60-90pcs/min

Work station:double type

power:1.5kw 380V 3P 50Hz

air : 5-6kgf/cm²

Working type :Automatically

Worker:1 people

Cylinder:Airtac Taiwan

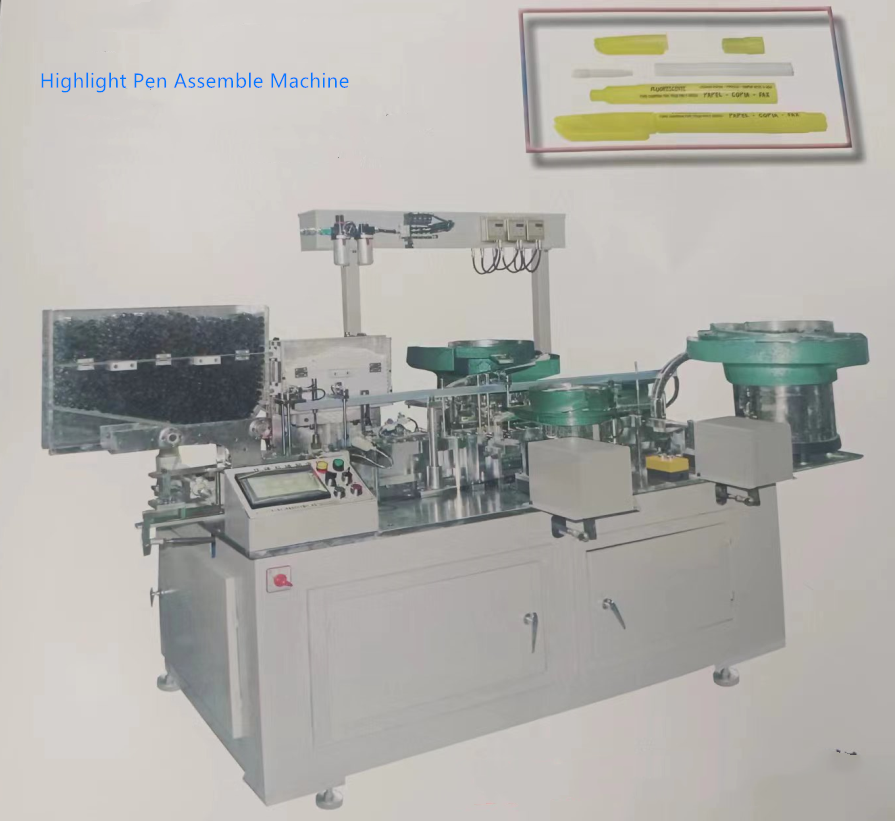

Highlighter automatic assembly machine Show:


high light pen assemble machine.png
