paint pen assemble machine

It's used to assembly refill, barrel, clip, knock, gear and spring to make finished pen.

EMAIL

paint pen assemble machine

machine characteristic:

This machine is a microcomputer with man-machine interface control, using frequency conversion speed regulation, so that the machine operation is simple and effective to improve work efficiency;

Micro computer contains large memory function, can effectively automatic memory poor products, automatic shutdown; Intelligent feeding system is adopted for feeding, and the action is divided by a splitter.

The machine is designed and manufactured entirely with precision dividers, which makes the machine energy-saving, long life and simple maintenance.

Work flow:

Automatic pen lever - automatic ball - automatic ink - automatic valve - automatic glue - automatic pen tip - automatic pen tip - automatic screw tip - automatic pen cap - Finished

Machine type

MS-YQ100

Machine power

220V/50Hz

Assemble speed

50-70pcs/min

Machine power

2.0KW

Machine air source

6-8Pcs/min

Boundary dimension

1500x1500x1300mm

Machine weight

1100kg

paint pen assemble machine

  Intelligent control parts :operation easily by use of high quality PLC and touch panel,along with variable frequency regulating speed technology,else saves energy
mechanical transpiration parts:take the use of high efficiency cams combined the precision machinery cam,are driver by the same main power,which can make improvement the stabilization and life span.
  automatically feeding system: feeding by way of vibration,the machine hands installation accurately,ensure the feeding stabilization and security high quality

working speed:50-60pcs/min

Work station:double type

power:1.5kw 380V 3P 50Hz

air : 5-6kgf/cm²

Working type :Automatically

Worker:1 people

Cylinder:Airtac Taiwan

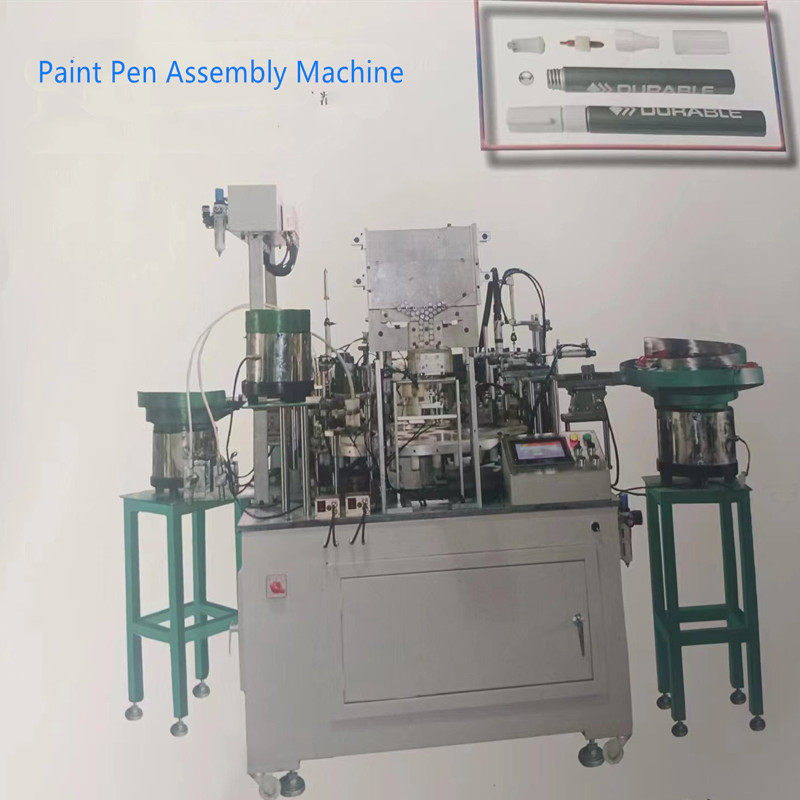

 paint pen assemble machine Show:

paint pen assemble machine_副本.jpg
