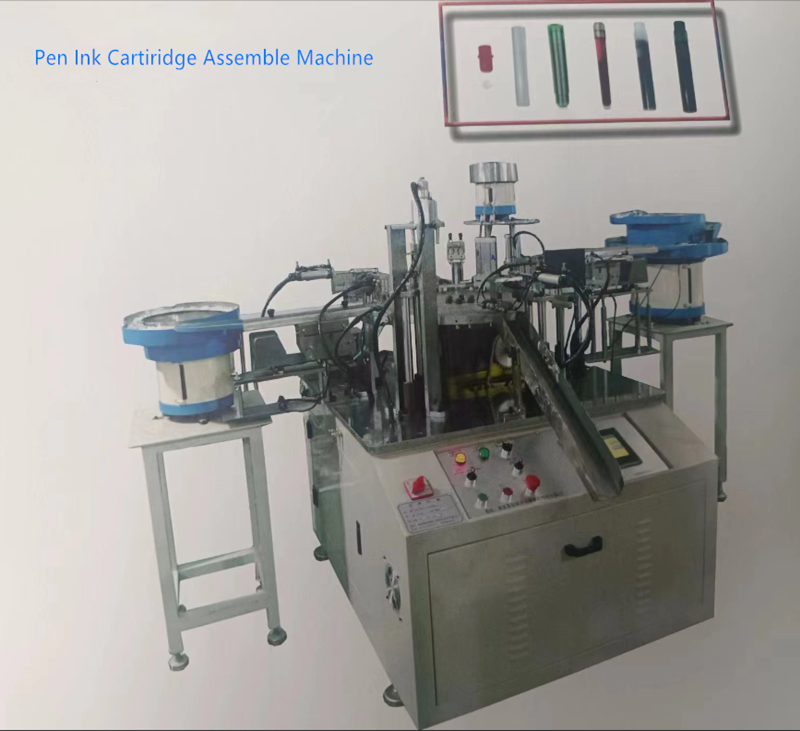

Ink cartridge filling assembly machine

machine characteristic：

The machine is a microcomputer with man-machine interface control, using frequency conversion speed regulation, so that the machine operation is simple and effective to improve work efficiency;

Micro computer contains large memory function, can effectively automatic memory poor products, automatic shutdown;

Can automatically detect whether the ink sac leakage, eliminate the appearance of defective products;

Inking pump adopts peristaltic pump, the amount of ink can be adjusted freely, and the accuracy can reach +0.02g.

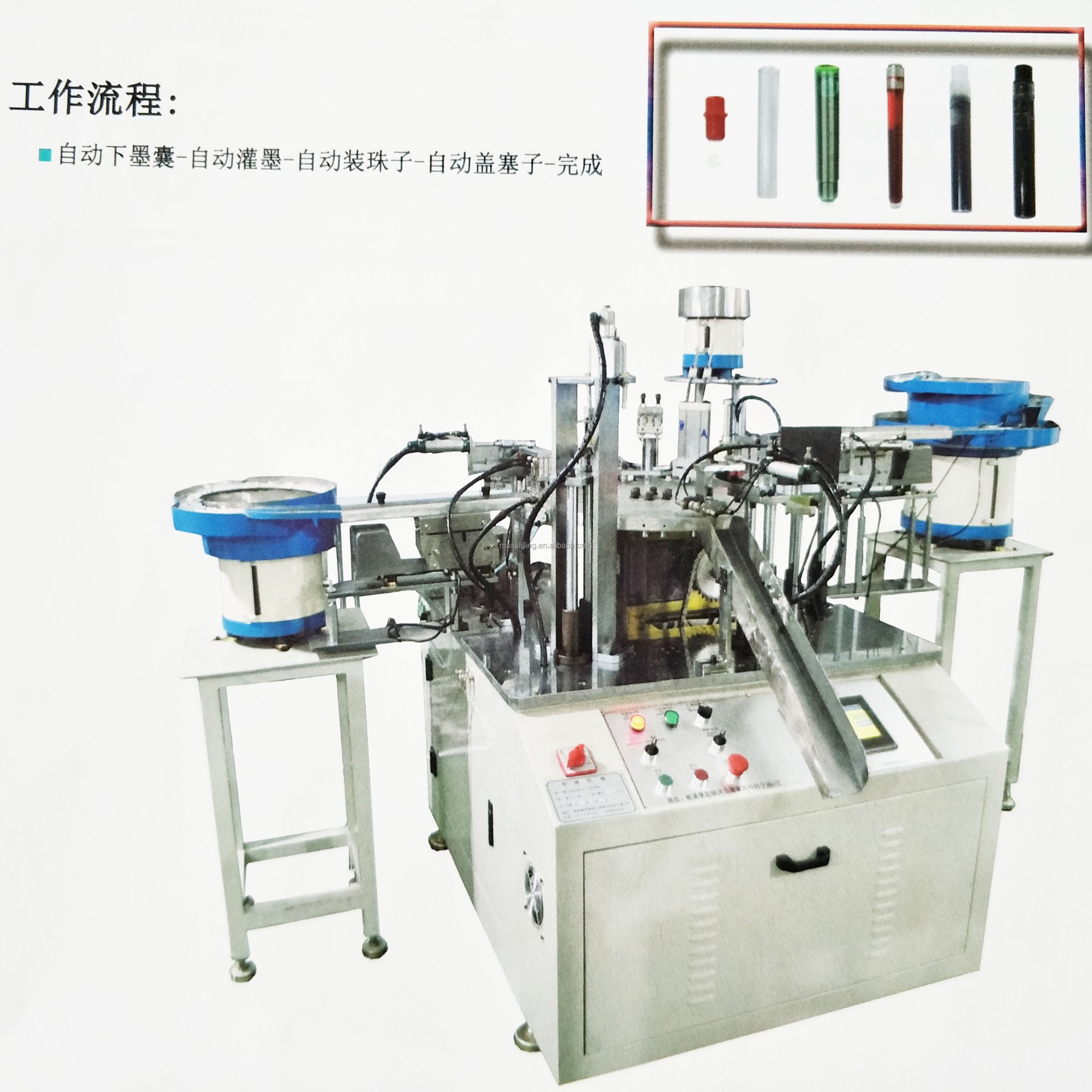

Work flow:

Automatic ink bag - automatic stuffing - automatic ink - automatic ball - Done.

Machine description

1、PLC control；PLC /Servo brand : Mitsubishi

2、Magnetic valve:DC24V, control power supply is DC24V；

3、Pneumatic components brand: Airtac/SMC；

4、The electric control cabinet and box shall have complete indication. The nameplate of components shall be clear and the line number shall be consistent with the line.

5、The electric control cabinet and box are wired in cable tray with full plastic comb hole cabinet, and the size of cable trays shall be reasonable.

6、Electrical control system is equipped with blocking protection and various chain protection functions.；

7、Machine is equipped with safty protection measures( No matter which station is in fault,machine will stops. The previous actions will be continued after the fault is removed and the machine is restarted), which ensures the safety of the equipment in the working process.

8、The electrical control system has electrical overload protection and various interlocking protection functions.
