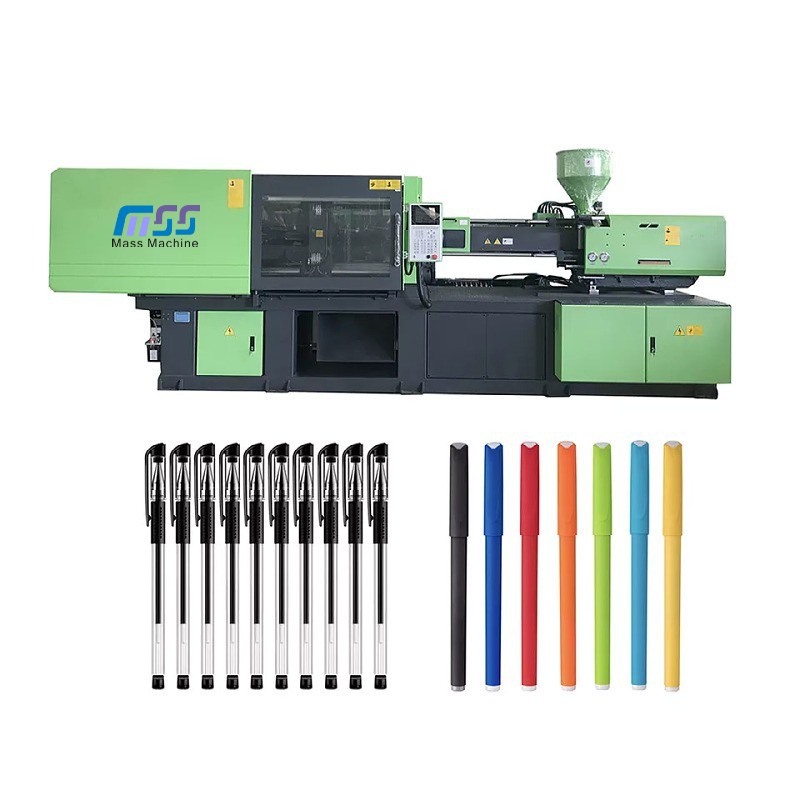

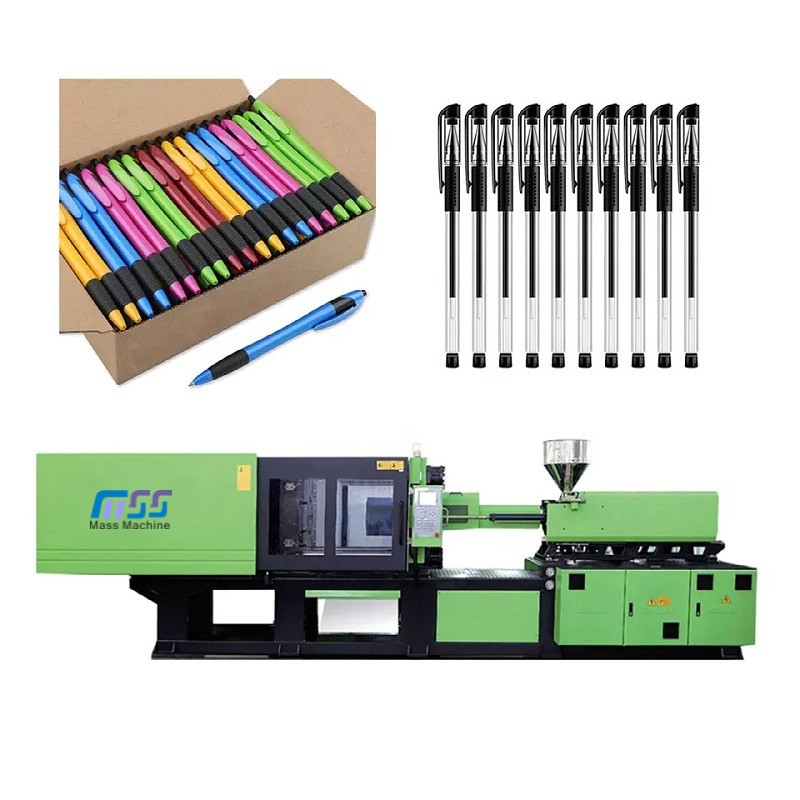

plastic pen Penholder making machine

It's used to make pen barrel tip,

plastic pen penholder making machine

CONTROL SYSTEM

All-digital control system uses dedicated controller, multiple CPU processing division,a multi-functional

automatic fault detection, alarm system, certificates 99 mold ofprocessing procedures, with remote control

interface. System is of high stability andresponsiveness. System uses color LCD, man made interface for

easy operation and with a number of peripheral interfaces.

HYDRAULIC SYSTEM

Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level

pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than

75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system

of flow and speed of response, and makes the whole machine reach the best performance.

Mechanical Vertical-Compression Structure Applied by Injection Molding Machine

1.100% clamping use ratio, 10%-20% higher than that of traditional structures;
2. Less fins on the finished products;
3. 2%-6% raw materials saved from production than that of traditional structures;
4. Effective protection for the mould, molding board, and pull rod;
5. A opening stroke 10%-20% longer than that of traditional structures;
6. Less deformation caused by cooling of the products.

Specification

Injection Part	Item/type	Unit	MA-180
	Screw type		A	B	C
	Screw diameter	mm	40	45	50
	Screw diame-ter ratio	L/D	22	22	20
	Theoretical injection volume	cm³	276	350	432
	Injection volume (PS)	g	251	318	393
	Maximum rate for inject-ion to air	cm³/s	126	159	196
	Injection pressure	MPa	215	169	137
	Injection stroke	mm	220
	Maximum injection speed	mm/s	111
	Maximal Rotational Speed of Screw	r/min	210
Clamping Part	Clamp Tonnage	KN	1800
	Toggle stroke	mm	490
	Distance between tie bars	mmxmm	465x418
	Maximum mould height	mm	520x470
	Minimum mould height	mm	200
	Ejection stroke	mm	150
	Ejector force forward	KN	45
	Ejector force backard	KN	30
	Amount of die thimble	Pcs	1+4
Others	System pressure	Mpa	17.5
	Motor power	KW	18.5
	Heater power	KW	9.95/1095
	Quantity of temperature-control zones		1+4
	Bucket capacity	KG	25
	Oil tank capacity	L	230
	Boundary dimension(L×W×H)	m	5.5x1.5x1.9
	Machine weight	Ton	5.6

Packaging & Shipping

Business process

1. Inquiry-Pofessional Inquiry
2. Confirm the price, leadtime, payment term etc
3. Sheenstar sales send the proform invoice with sheenstar seal
4. Customer make the payment for deposit and send us bank receipt and offer samples
5. Inform customer has got the deposit and start to production
6. Middle production- send photos to show the production line which you can see your products in. Confirm

the estimated delivery time again
7. Clients make payment for balance and Sheenstar ship the goods. Also can accept payment term-Balance

against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.
8.Order can be say “finish” when you receive the goods and satisfy with them.
9. Feedback to Freedom about Quality , Service, Market Feedback & Suggestion. And we can do better.

Packing&Deliver

We take care of our machine packing and loading.

Injection machine with anti-rust process, make sure no rust due to ocean shipment.

Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.

We should take photos of loading, and send to you for reference.
